31WG

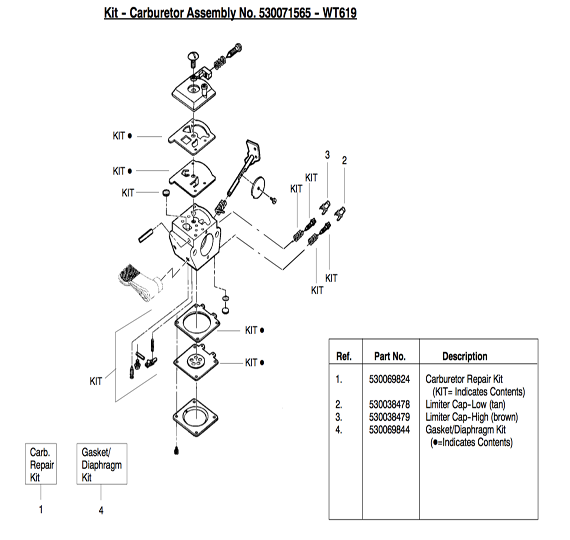

31WG Carburetor Part 1
| # | Part # | 31WG Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530069824 | Carburetor Repair Kit | |
| 2 | 530038478 | Limiter Cap-Low | |
| 3 | 530038479 | Limiter Cap-High | |
| 4 | 530069844 | Carb Gasket/Diaphragm |

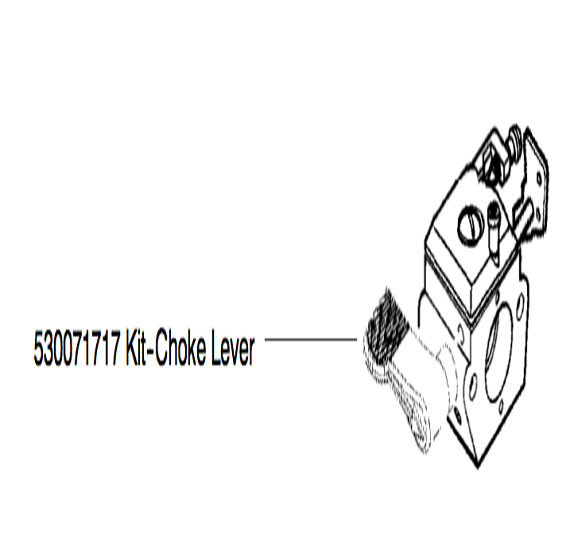

31WG Carburetor Part 2
| # | Part # | 31WG Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530071637 | Kit - Carburetor Assembly - Wt619 | |
| 2 | 530071717 | Kit - Choke Lever |

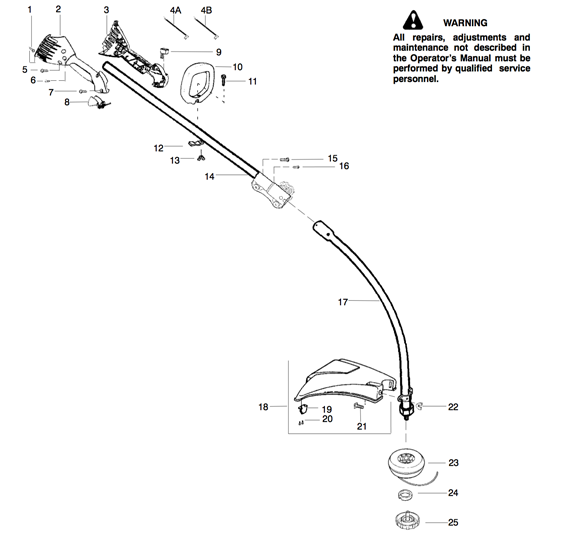

31WG Parts
| # | Part # | 31WG Part Name | Note |
|---|---|---|---|
| 1 | 530015886 | Screw | |
| 2 | 530054837 | Hsg.-Throttle (Right) | |
| 3 | 530071553 | Kit-Left Throttle Hsg. | |
| 4A | 530054943 | Assembly-Front Wire Lower Front Wire | |
| 4B | 530055724 | Assembly-Front Wire Upper Front Wire | |
| 5 | 530015886 | Screw | |
| 6 | 530015805 | Screw | |
| 7 | 530015886 | Screw | |
| 8 | 530054940 | Trigger | |
| 9 | 530069572 | Kit-Switch | |
| 10 | 530071746 | Assembly-Handle-Assist | |
| 11 | 530015820 | Bolt | |
| 12 | 530088416 | Clamp-Assist Handle | |
| 13 | 530091373 | Wingnut | |
| 14 | 530071607 | Assembly-Upper Shaft | |
| 15 | 530016344 | Screw | |
| 16 | 530016343 | Screw-Alignment | |
| 17 | 530071557 | Assembly-Lower Shaft | |
| 18 | 530069779 | Kit-Shield Assembly | |
| 19 | 530052285 | Limiter-Line | |
| 20 | 530015805 | Screw | |
| 21 | 530015820 | Bolt | |
| 22 | 530091373 | Wingnut | |
| 23 | 952711574 | Assembly - Spool and Line | |
| 24 | 530403949 | Guide-Line | |
| 25 | 530054222 | Assy-Cap & Spring | |
| 800 | 530163734 | Operator Manual | |
| 800 | 530056221 | Decal-Upper Shaft | |
| 800 | 530056220 | Decal - Shaft Warning | |
| 800 | 530057369 | Decal-Starting Instruction |

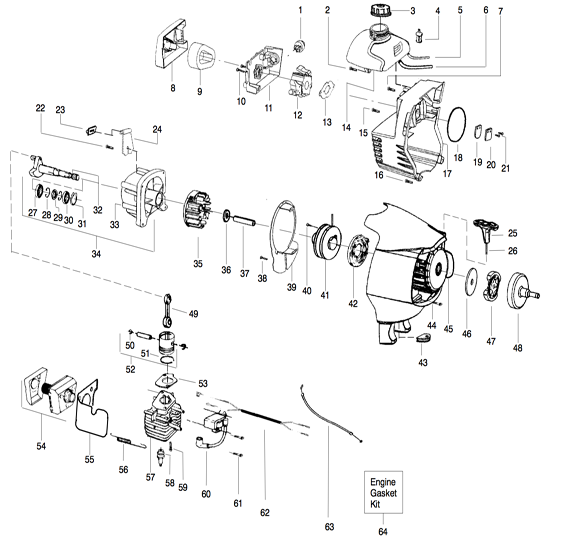

31WG Engine Parts
| # | Part # | 31WG Engine Part Name | Note |
|---|---|---|---|
| 1 | 530047721 | Bulb-Purge "snap-in" | |
| 2 | 530015843 | Screw | |
| 3 | 530049386 | Assembly-Fuel Cap | |
| 4 | 530095646 | Fuel Pick-up Ass'y. | |
| 5 | 530069247 | Kit - Line Carb/Purge | Part Number 530069247- Purge Lines Required to be Ordered; Old Purge Lines Not Compatible with this Bulb |
| 6 | 530069216 | Kit-Line Tank/Purge | |
| 7 | 530015775 | Screw | |
| 8 | 530054935 | Cover-Air Box | |
| 9 | 530054946 | Filter-Air | |
| 10 | 530015849 | Screw | |
| 11 | 530054934 | Box-Air | |
| 12 | 530071637 | Kit - Carburetor Assembly - Wt619 | |
| 13 | 530071401 | Gasket-Carb. (Kit) | |
| 14 | 545075305 | Assy-Fuel Tank | |
| 15 | 530015771 | Screw | |
| 16 | 530015952 | Screw-Shrd To F/Hsg. | |
| 17 | 530056044 | Shroud | |
| 18 | 530071401 | Gasket-Carb. (Kit) | |
| 19 | 530027593 | Reed Valve | |
| 20 | 530054596 | Stop-Reed | |
| 21 | 530016064 | Screw | |
| 22 | 530015875 | Screw | |
| 23 | 530055492 | Isolator-Fuel Tank | |
| 24 | 530054941 | Ret.-Fuel Tank | |
| 25 | 530054834 | Handle-Starter | |
| 26 | 530071325 | Kit - Rope | |
| 27 | 545081601 | Inner Bearing | |
| 28 | 530015787 | Retaining Ring | |
| 29 | 530019158 | Crankshaft Seal | |
| 30 | 530032102 | Outer Bearing | |
| 31 | 530015789 | Retaining Ring | |
| 32 | 530054948 | Assembly-Crankshaft | |
| 33 | 545081901 | Assy-Crankcase | |
| 34 | 545006037 | Assy-C'case/C'shaft | |
| 35 | 530055524 | Assy-Flywheel | |
| 36 | 530016030 | Washer | |
| 37 | 530055620 | Spacer | |
| 38 | 530015775 | Screw | |
| 39 | 545115201 | Plate-Baffle | |
| 40 | 530016391 | Screw | |
| 41 | 530071399 | Kit-Pulley | |
| 42 | 545008011 | Spring - Starter | |
| 43 | 530019182 | Grommet | |
| 44 | 530015810 | Screw | |
| 45 | 545022010 | Assy.-Fan Housing | |
| 46 | 530094189 | Clutch Washer | |
| 47 | 530055122 | Assembly-Clutch | |
| 48 | 530150247 | Assy-Clutch Drum | |
| 49 | 530010960 | Connecting Rod Assembly | |
| 50 | 530015162 | Wrist Pin Retainer | |
| 51 | 530025875 | Piston Ring | |
| 52 | 530069899 | Piston Kit | |
| 53 | 530071401 | Gasket-Carb. (Kit) | |
| 54 | 530069310 | Kit-Muffler | |
| 55 | 530058957 | Shield | |
| 56 | 530036409 | Muffler Attachment Spring | |
| 57 | 530071582 | Kit-Cylinder | |
| 58 | 952030249 | Spark Plug (RCJ6Y) | |
| 59 | 530001624 | Screw 1/4-20 x 7/8 | |
| 60 | 530039218 | Module-Ignition | |
| 61 | 530016357 | Screw-Ignition Module | |
| 62 | 530057238 | Assembly-Rear Wire | |
| 63 | 530054942 | Assembly-Throttle Cable | |
| 64 | 530071401 | Gasket-Carb. (Kit) |
