BC2400 Type 5
BC2400 Carburetor Assembly Type 5
| # | Part # | BC2400 Carburetor Assembly | Note | Purchase |
|---|---|---|---|---|
| B | 530071639 | Kit Carb Assembly | WT-639 | Buy |
BC2400 Carburetor Parts Type 5
| # | Part # | BC2400 Carburetor Parts | Note | Purchase |
|---|---|---|---|---|
| 1 | 530069829 | Carburetor Repair Kit | Buy | |
| 2 | 530038318 | Limiter Cap - High | Buy | |
| 3 | 530038317 | Limiter Cap -Low | Buy | |
| 4 | 530069844 | Carb Gasket/Diaphragm | Buy | |
| 5 | 530035293 | Needle Spring-Low Speed | Buy | |
| 6 | 530035433 | Needle-Low Speed | Buy | |
| 7 | 530035295 | Needle Spring-High Speed | Buy | |
| 8 | 530035388 | Needle-High Speed | Buy |

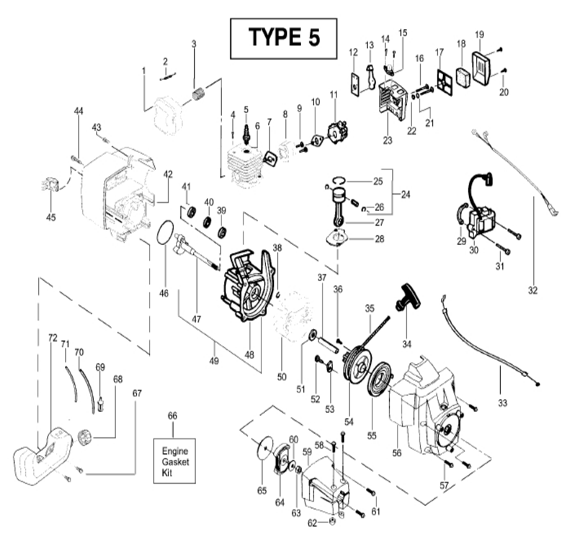

BC2400 Engine Parts Type 5
| # | Part # | BC2400 Engine Parts | Note | Purchase |
|---|---|---|---|---|
| 1 | 530071396 | Kit - Muffler | Buy | |
| 2 | 530042088 | Muffler Spring | Buy | |
| 3 | 530071391 | Screen-Spark Arrestor | Buy | |
| 4 | 530015953 | Screw-Cylinder | Buy | |
| 5 | 952030249 | Spark Plug (RCJ6Y) | Buy | |
| 6 | 530012416 | Kit - Cylinder | Buy | |
| 7 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 8 | 530055535 | Adaptor-Carb. | Buy | |
| 9 | 530016014 | Screw | Buy | |
| 10 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 12 | 530037326 | Type II | Buy | |
| 13 | 530038102 | Choke Shutter | Buy | |
| 14 | 530015780 | Screw-Type II | Buy | |
| 15 | 530038874 | Bulb Assembly | Buy | |
| 16 | 530016353 | Screw | Buy | |
| 17 | 530037413 | Type II | Buy | |
| 18 | 530037331 | Air Foam Filter | Buy | |
| 19 | 530037292 | Type II | Buy | |
| 20 | 530016349 | Screw-Throttle Hsg. | Buy | |
| 21 | 530015852 | Spacer | Buy | |
| 22 | 530015254 | Wave Washer | Buy | |
| 23 | 530037969 | Air Box | Buy | |
| 24 | 530071833 | Kit- Piston | Incl. 25, 26 & Pin | Buy |
| 25 | 545154001 | Piston Ring | ||
| 26 | 530015162 | Wrist Pin Retainer | Buy | |
| 27 | 530049817 | Assembly - Connecting Rod | ||
| 28 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 29 | 530036145 | Spacer | Buy | |
| 30 | 530039163 | Ignition Module | Buy | |
| 31 | 530015954 | Screw | Buy | |
| 32 | 530047278 | Assembly-Switch Wire | Buy | |
| 33 | 530056241 | Assy Throttle Cable | Buy | |
| 34 | 530027569 | Starter Handle | Buy | |
| 35 | 530069232 | Rope (3 ft.) | Buy | |
| 36 | 530016080 | Rope Retain Screw | Buy | |
| 37 | 530037705 | Spacer-Flywheel | Buy | |
| 38 | 530015941 | Retaining Ring | Buy | |
| 39 | 530055728 | Outer Bearing | Buy | |
| 40 | 530071615 | Seal-C'Case | ||
| 41 | 530032125 | Inner Bearing | Buy | |
| 42 | 530056943 | Shroud (Green) | Buy | |
| 43 | 530015934 | Screw | Buy | |
| 44 | 530015810 | Screw | Buy | |
| 45 | 530054536 | Guard-Muffler | Buy | |
| 46 | 530071363 | Gasket-Cyl/Carb. | Buy | |
| 47 | 530052344 | Crankshaft Assembly | Buy | |
| 48 | 530012509 | Assy-C'case | Incl. 39-41 | |
| 49 | 530071625 | Kit Assy C'C | Incl. 38, 47, 48 | Buy |
| 50 | 530054115 | Assembly - Flywheel | Buy | |
| 51 | 530015149 | Washer-Barclamp Screw | Buy | |
| 52 | 530015775 | Screw | Buy | |
| 53 | 530027523 | Retainer | Buy | |
| 54 | 530069400 | Starter Pulley | Incl 36 | Buy |
| 55 | 545008010 | Starter Spring | ||
| 56 | 530071392 | Assy Fan Hsg Green | Buy | |
| 57 | 530015810 | Screw | Buy | |
| 58 | 530015767 | Screw | Buy | |
| 59 | 530014923 | Clutch Hsg. | ||
| 60 | 530015828 | Washer | Buy | |
| 61 | 530015886 | Screw | Buy | |
| 62 | 530015768 | Locknut | Buy | |
| 63 | 530626605 | Flywheel Nut | Buy | |
| 64 | 530069491 | Clutch Assembly | Buy | |
| 65 | 530015611 | Washer-Clutch | Buy | |
| 66 | 530071363 | Gasket-Cyl/Carb. | Incl. 7, 10, 28, 48 | Buy |
| 67 | 530016379 | Retainer-Fuel Tank | Buy | |
| 68 | 530014347 | Fuel Cap (w/ retainer) | Buy | |
| 69 | 530095646 | Fuel Pick-up Ass'y. | Buy | |
| 70 | 530069247 | Kit - Line Carb/Purge | Part Number 530069247- Purge Lines Required to be Ordered; Old Purge Lines Not Compatible with this Bulb | Buy |
| 71 | 530069216 | Kit-Line Tank/Purge | Buy | |
| 72 | 530057046 | Assy Fuel Ta | Buy |
BC2400 Parts Type 5
| # | Part # | BC2400 Parts | Note | Purchase |
|---|---|---|---|---|
| 2 | 530036515 | Throttle Hsg. (Right) | Buy | |
| 3 | 530036556 | Throttle Lever | Buy | |
| 4 | 530015957 | Screw | Buy | |
| 5 | 530036514 | Throttle Hsg. (Left) | Buy | |
| 6 | 530069572 | Kit-Switch | Buy | |
| 7 | 530071605 | Clamp-Harness Kit | Buy | |
| 8 | 530016406 | Screw | Buy | |
| 9 | 530015791 | Screw | Buy | |
| 10 | 530094572 | Handlebar Bracket | Buy | |
| 11 | 530092086 | Handlebar Grip | Buy | |
| 12 | 530056300 | Handlebar Assembly w/DE | Buy | |
| 13 | 530092192 | Handlebar Cap | Buy | |
| 14 | 530012207 | Handlebar Clamp | ||
| 16 | 530055394 | Clamp Harness Lower | Buy | |
| 20 | 530015650 | Screw 10-24 x 5/8 | Buy | |
| 21 | 530015328 | Washer - #10 Heavy Lock | Buy | |
| 22 | 530016140 | Screw | Buy | |
| 23 | 530019235 | Seal Sleeve | Buy | |
| 25 | 530016141 | Screw-Gear Box/Shield | Buy | |
| 27 | 952711585 | Brush Blade | Buy | |
| 29 | 530016240 | Washer | Buy | |
| 30 | 530015793 | Nut-Flange | Buy | |
| 31 | 952711580 | Spool W/Line | Buy | |
| 32 | 530401957 | Retainer - Spool | Buy | |
| 33 | 530053241 | Spring - Return | Buy | |
| 34 | 530095772 | Assembly-Hub | Buy | |
| 35 | 952711550 | Accy-Cutting Head Assembly | Buy | |
| 36 | 530091373 | Wingnut | Buy | |
| 37 | 530015820 | Bolt | Buy | |
| 38 | 530015805 | Screw | Buy | |
| 39 | 530052285 | Limiter-Line | Buy | |
| 40 | 530069779 | Kit-Shield Assembly | Incl. 36-39 | Buy |
| 41 | 530094417 | Shoulder Strap | Buy | |
| 42 | 530095812 | Bracket-Shield | Buy | |
| 43 | 530016312 | Screw | Buy | |
| 44 | 530016014 | Screw | Buy | |
| 45 | 530016371 | Screw-Align | Buy | |
| D | 530088848 | Manual Operators (B | Buy | |
| D | 530056335 | Decal-Blade Direction | Buy | |
| D | 530031159 | Wrench - Hex (5/32") | Buy | |
| D | 530031098 | Hex Wrench (3/16) | Buy | |
| D | 530053690 | Decal Handlebar | Buy | |
| D | 530055349 | Decal Shaft | Buy |
