FL20

FL20 Parts

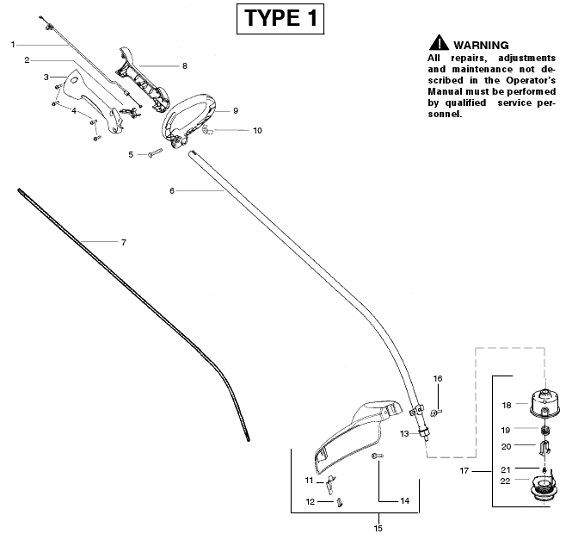

trimmer FL20 Type 1 Parts

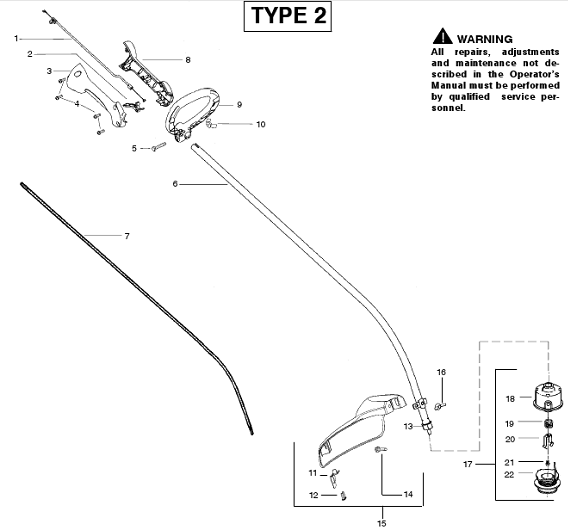

weedeater FL20 Type 2 Parts

#Part #FL20 Part NameNotePurchase
1.530057991Assy--- Throttle CableBuy
2.530058000TriggerBuy
3.530057582Throttle Hsg.RightBuy
4.530015880Screw--- Throttle Hsg.Buy
5.530015821BoltBuy
6.530071773Assy--- Drive Shaft Hsg.Buy
7.530095242Shaft--- Flex
8.530057581Throttle Hsg.LeftBuy
9.530057587Handle--- AssistBuy
10.530016152Wingnut
11.530052287Line LimiterBuy
12.530015966Screw--- Line LimiterBuy
13.530095563Dust CupBuy
14.530015820BoltBuy
15.530071772Kit--- Shield AssyIncl. 11,12,14,16Buy
16.530016152Wingnut
17.952701666Accy--- TNG IV Cutting HeadIncl. 18 - 22Buy
18.530069690Assy--- Hub
19.530401464Spring --- CompressionBuy
20.530401466Clip --- Retainer--- HeadBuy
21.530401467ScrewBuy
22.952711527Accy--- Spool w/LineBuy
530163883Operator Manual
530057720Decal - Start Inst.Buy
530055350Decal - Shaft Warning

FL20 Engine Parts

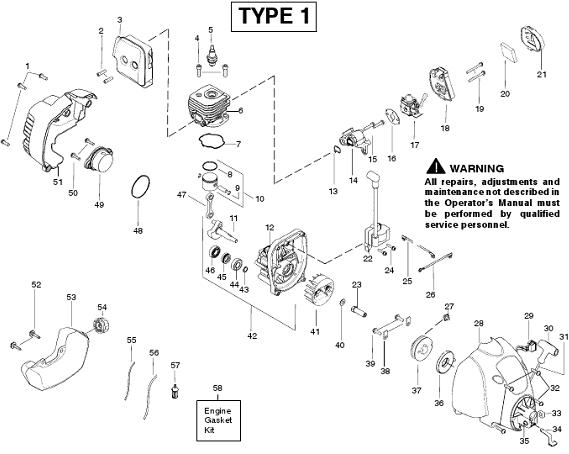

FL20 trimmer engine Type 1 Parts

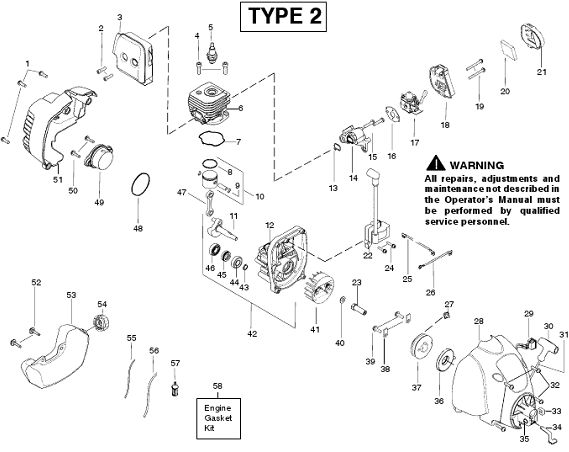

FL20 trimmer engine Type 2 Parts

#Part #FL20 Engine Part NameNotePurchase
1.530015880ScrewBuy
2.530058982Bolt-MufflerBuy
3.530057863Assy-Muffler/Shieldincluding 2Buy
4.530015953Screw-CylinderBuy
5.952030249Spark PlugRCJ 6YBuy
6.530012541CylinderBuy
7.530071750Seal-CylinderkitBuy
8.530055120Piston RingBuy
9.530015162Retainer-Piston PinBuy
10.530071357Kit - Pistonincluding 8, 9
11.530057829Assy-CrankshaftBuy
12.530012542Assy-Crankcaseincluding 44-46
13.530071750Seal-Cyl/Carb.kitBuy
14.530057547Adapter-Carb.Buy
15.530016309ScrewBuy
17.530071752Repair Kit-Carb. Zama C1U-W18RB-115 Kit Buy
17a.WT-669Repair Kit-Carb. WalbroK20-WAT Kit
Buy
18.530057585Air BoxBuy
19.530016429ScrewBuy
20.530057781Foam-Air FilterBuy
21.530057584Cover-Air BoxBuy
22.530039223Ignition Module
23.530038604Coupling-DriveBuy
24.530016357ScrewBuy
25.530014663Assy-LeadwireBuy
26.530014662Assy-Ground WireBuy
27.530016392ScrewBuy
28.530058600Assy.-Fan HsgBuy
29.530071356Kit-SwitchBuy
30.530027569Handle-StarterBuy
31.530071767Kit - RopeBuy
32.530015810ScrewBuy
33.530016124NutBuy
34.530057588Clip-SpringBuy
35.530016430ScrewBuy
36.530042085Spring-StarterBuy
37.530071786Kit-Pulley-StarterBuy
38.530027523Retainer-PulleyBuy
39.530015775ScrewBuy
40.530015828Washer-FlatBuy
41.530054115Assy-FlywheelBuy
42.530071768Assy-C'case & C'shaftincluding 11,12,43Buy
43.530015941Retain. Ring-C'shaftBuy
44.530055728Outer BearingBuy
45.530019264Seal-C'caseBuy
46.530032125Inner BearingBuy
47.530069945Assy-Connecting RodBuy
48.530071750O-Ring-C'caseBuy
49.530057954Assy-Plugincluding 48Buy
50.530016386ScrewBuy
51.530057580Shroud-RearBuy
52.530016431Retainer-TankBuy
53.530058582Assy-Fuel TankBuy
54.530014347Assy-Fuel CapBuy
55.530069247Kit-Fuel LinesmallBuy
56.530069216Kit-Fuel LinelargeBuy
57.530095646Assy-Fuel PickupBuy
58.530071750Kit-Engine Gasketincluding 7,13,16,48Buy
59.530035560Carburetor Adjustment ToolNot on DiagramBuy
60.CP7826Compression TesterNot on DiagramBuy
