FL26

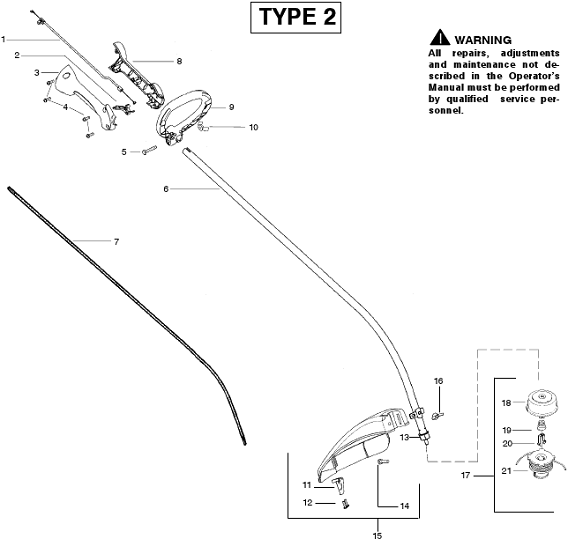

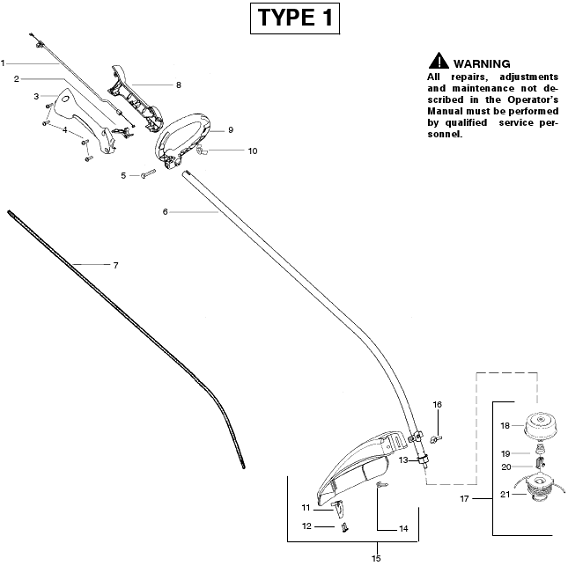

FL26 Parts
# | Part # | FL26 Part Name | Note | Purchase |
---|---|---|---|---|
1 | 530057991 | Assy--- Throttle Cable | Buy | |
2 | 530058000 | Trigger | Buy | |
3 | 530057582 | Throttle Hsg. | Right | |
4 | 530015880 | Screw--- Throttle Hsg. | ||
5 | 530015821 | Bolt--- Handle/Shield | ||
6 | 530071769 | Assy--- Drive Shaft Hsg. | ||
7 | 530095803 | Shaft--- Flex | ||
8 | 530057581 | Throttle Hsg. | Left | |
9 | 530057587 | Handle--- Assist | ||
10 | 530016152 | Wingnut | ||
11 | 530052286 | Line Limiter | ||
12 | 530015966 | Screw--- Line Limiter | ||
13 | 530095563 | Dust Cup | ||
14 | 530015820 | Bolt | ||
15 | 530071795 | Kit--- Shield Assy | Incl. 11,12,14,16 | |
16 | 530016152 | Wingnut | ||
17 | 952711621 | Accy--- TNG VI Cutting Head | Incl. 18-21 | Buy |
18 | 530095776 | Assy--- Hub | ||
19 | 530053241 | Spring --- Compression | ||
20 | 530401957 | Clip --- Retainer--- Head | ||
21 | 952711616 | Accy--- Spool w/Line | ||
545186736 | Operator Manual | Not Shown | ||
530055350 | Decal--- Shaft Warning | Not Shown |
FL26 Engine Parts
# | Part # | FL26 Engine Part Name | Note | Purchase |
---|---|---|---|---|
1 | 530015880 | Screw | ||
2 | 530058982 | Bolt-Muffler | ||
3 | 530057863 | Assy-Muffler/Shield | including 2 | |
4 | 530015953 | Screw-Cylinder | ||
5 | 952030249 | Spark Plug | RCJ 6Y | Buy |
6 | 530012541 | Cylinder | ||
7 | 530071750 | Seal-Cylinder | kit | Buy |
8 | 530055120 | Piston Ring | ||
9 | 530015162 | Retainer-Piston Pin | ||
10 | 530071833 | Kit - Piston | including 8, 9 | Buy |
11 | 530057829 | Assy-Crankshaft | ||
12 | 530012542 | Assy-Crankcase | including 44-46 | |
13 | 530071750 | Seal-Cyl | kit | Buy |
14 | 530057547 | Adapter-Carb. | ||
15 | 530016309 | Screw | ||
17 | 530071752 | Kit-Carb. Zama C1U-W18 | RB-115 Kit | Buy |
17a. | 545081808 | Kit-Carb. Walbro WT-669 | K20-WAT Kit | Buy |
18 | 530057585 | Air Box | ||
19 | 530016429 | Screw | ||
20 | 530057781 | Foam-Air Filter | Buy | |
21 | 530057584 | Cover-Air Box | Buy | |
22 | 530039223 | Ignition Module | ||
23 | 530038604 | Coupling-Drive | ||
24 | 530016357 | Screw | ||
25 | 530014663 | Assy-Leadwire | ||
26 | 530014662 | Assy-Ground Wire | ||
27 | 530016392 | Screw | ||
28 | 530058600 | Assy.-Fan Hsg | Buy | |
29 | 530071356 | Kit-Switch | Buy | |
30 | 530027569 | Handle-Starter | ||
31 | 530071767 | Kit - Rope | ||
32 | 530015810 | Screw | ||
33 | 530016124 | Nut | ||
34 | 530057588 | Clip-Spring | ||
35 | 530016430 | Screw | ||
36 | 530042085 | Spring-Starter | ||
37 | 530071786 | Kit-Pulley-Starter | ||
38 | 530027523 | Retainer-Pulley | ||
39 | 530015775 | Screw | ||
40 | 530015828 | Washer-Flat | ||
41 | 530054115 | Assy-Flywheel | ||
42 | 530071768 | Assy-C'case & C'shaft | including 11,12,43 | |
43 | 530015941 | Retain. Ring-C'shaft | ||
44 | 530055728 | Outer Bearing | ||
45 | 530019264 | Seal-C'case | ||
46 | 530032125 | Inner Bearing | ||
47 | 530069945 | Assy-Connecting Rod | ||
48 | 530071785 | Kit--Piston/Rod Assy | Incl. 10 & 47 | |
49 | 530071750 | O-Ring-C'case | kit | Buy |
50 | 530057954 | Assy-Plug | including 49 | |
51 | 530016386 | Screw | ||
52 | 530057580 | Shroud-Rear | ||
53 | 530016431 | Retainer-Tank | ||
54 | 545104103 | Assy-Fuel Tank | including filter, lines & fuel cap | Buy |
55 | 530014347 | Assy-Fuel Cap | Buy | |
56 | 530069247 | Kit-Fuel Line | Small | Buy |
57 | 530069216 | Kit-Fuel Line | Large | Buy |
58 | 530095646 | Assy-Fuel Pickup | Buy | |
59 | 530071750 | Kit-Engine Gasket | including 7,13,16,49 | Buy |
530057827 | Choke Lever - Zama | Not Shown | ||
530058662 | Choke Lever - Walbro | Not Shown | ||
530035560 | Carburetor Adjustment Tool | Not shown | Buy | |
CP7826 | Compression Tester | Not shown | Buy |
