SST45

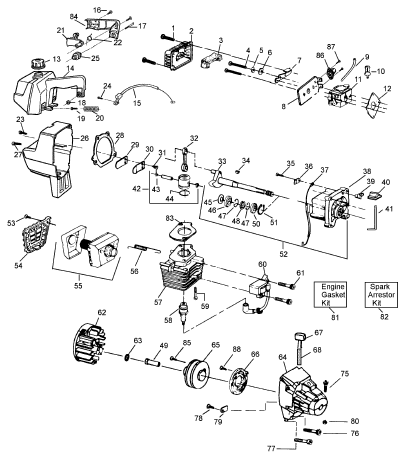

SST45 Power Unit

trimmer SST45 power unit Parts

#Part #SST45 Power Unit Part NameNotePurchase
1530015773ScrewBuy
2530027529Air Filter Cover
3530027530Air FilterBuy
4530015849ScrewBuy
5530015852SpacerBuy
6530015254Wave WasherBuy
7530038103Choke ShutterBuy
8530027527Air Filter Plate Type 1Buy
8530037930Air Filter Plate Type 2 & 3Buy
9530069247Fuel Line Kit - Fuel LineBuy
9530069238Fuel Line Kit - Return Line Type 2 & 3
10530014362Fuel Pick-up Ass'y.Buy
11530069637Carburetor Type 1 (WA-217)
11530069568Carburetor Type 2 & 3 (WA-219B)
12530019156Carburetor GasketIncluded in Engine Gasket Kit, P/N 530-069276Buy
13530014347Fuel Cap Ass'y.Buy
14530029552Handle & Tank Ass'y. Type 1
14530047102Handle & Tank Ass'y. Type 2 & 3
15530027964Throttle Cable Ass'y. Type 1Buy
15530037499Throttle Cable Ass'y. Type 2 & 3
16530015805ScrewBuy
17530015809ScrewBuy
18530015807NutBuy
19530015713ScrewBuy
20530027926Rear Isolator SpringBuy
21530027924Throttle TriggerBuy
22530027925Throttle SpringBuy
23530015810ScrewBuy
24530015775ScrewBuy
25530024256IsolatorBuy
26530027923ShroudBuy
27530015771ScrewBuy
28530019154GasketIncluded in Engine Gasket Kit, P/N 530-069276Buy
29530027593ReedBuy
30530027594Reed StopBuy
31530016064ScrewBuy
32530010960Connecting Rod Ass'y.Buy
33530010945Crankshaft Ass'y.See Service Ref. 1Buy
34530015126Flywheel KeyBuy
35530015780ScrewBuy
36530027546Switch InsulatorBuy
37530027547Lead WireBuy
38530014016Crankcase Ass'y.Incl. 46,47,48 & 50
39530027545Switch RampBuy
40530038309Switch ButtonBuy
41530027959Switch SpringBuy
42530069275Piston KitIncl. 43,44 & pin
43530015162Piston Pin RetainerBuy
44530025875Piston RingBuy
45SpacerSee Service Ref. 1
46530032103Inner BearingBuy
47530015787Retaining RingBuy
48530019158Crankshaft SealBuy
49530027953Drive CouplingBuy
50530032102Outer BearingBuy
51530015789Crankshaft Retaining RingBuy
52530014004Crankcase & Crankshaft Ass'y.Incl. 33,38 & 46-51
53530015717ScrewBuy
54530027781Muffler GuardBuy
55530069257Muffler Kit
56530036409Muffler SpringBuy
57530069626Cylinder
58530030077Spark Plug Type 1 & 2 (CJ-14)Buy
58530030075Spark Plug Type 3 (RCJ-8Y)
59530015239ScrewBuy
60530039134Ignition Module KitBuy
61530015128Screw
62530047198Flywheel Ass'y.Buy
63530015828WasherBuy
64530014044Fan HousingBuy
65530069291Starter PulleyIncl. 85Buy
66530029395Starter Spring
67530027569Starter HandleBuy
68530069232Rope KitBuy
75530015767ScrewBuy
76530015770Screw
77530015769ScrewBuy
78530015496ScrewBuy
79530027523Pulley RetainerBuy
80530015768LocknutBuy
81530069276Engine Gasket KitIncludes items 12,28,83Buy
82952701612Spark Arrestor KitBuy
83530019178Cylinder GasketIncluded in Engine Gasket Kit, P/N 530-069276
84530027917Handle CoverBuy
85530016080Screw - PulleyBuy
86530038874Primer Bulb Ass'y. Type 2 & 3Buy
87530016091Screw - Primer Type 2 & 3Buy
88530015882Screw - Starter Spring - Type 3Buy
530027970Instruction Decal Type 1Buy
530037742Instruction Decal Type 2 (Not a serviceable part)
530038843Instruction Decal Type 3 (Not a serviceable part)Buy

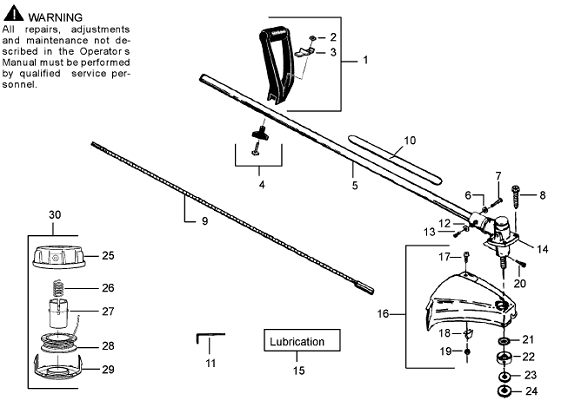

SST45 Driveshaft Cutting Head

weedeater SST45 driveshaft cutting head

#Part #SST45 Part NameNotePurchase
1530069496Assist Handle KitIncl. 2-4Buy
2530015610NutBuy
3530094742ClampBuy
4530069252"T" Handle Ass'y.
5530014772Drive Shaft HousingBuy
6530001642LockwasherBuy
7530001711ScrewBuy
8530016107ScrewNot Shown- New part number for this IPLBuy
9530095146Drive ShaftBuy
10530029159Shaft Warning Decal
11530031111Hex Wrench (5/32)
12530015328LockwasherBuy
13530094612ScrewBuy
14530094568Gear Box Assy.
15952030139Shaft Lubrication
16530069256Shield Kit Assy.Incl. 17-19Buy
17530015037ScrewBuy
18530094570Line LimiterBuy
19534235901Locknut
20530094616ScrewBuy
21530094640SealBuy
22530094639Dust CupBuy
23530094571Grass WasherBuy
24530094189WasherBuy
25530014773Hub Assy.Buy
26530094830SpringBuy
27530094827Release ButtonBuy
28952701619Spool w/LineBuy
29530094828CoverBuy
30952701657Cutting Head Ass'yBuy
530081849Operator Manual GTI 52, SST 45Not ShownBuy
530081871Operator Manual Type 2Not ShownBuy
530083179Operator Manual Type 3Not Shown - New part number for this IPLBuy

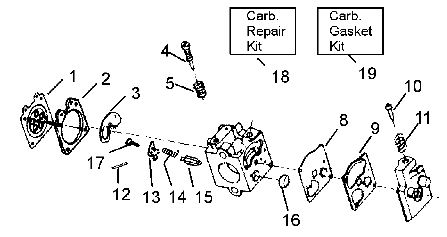

SST45 Carburetor Assembly

weedeater SST45 trimmer carburetor assembly

#Part #SST45 Carburetor Part NameNotePurchase
1530035014Metering DiaphragmIncluded in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219Buy
2530035151Metering Diaphragm GasketIncluded in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219Buy
3530035211Circuit Plate GasketIncluded in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219Buy
4530035212Mixture Needle WA-207/207A
4530035341Mixture Needle WA-219Buy
5530035214Mixture Needle Spring WA-207/207A
5530035342Mixture Needle Spring WA-219Buy
8530035166Fuel Pump DiaphragmIncluded in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219Buy
9530035164Fuel Pump GasketIncluded in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219Buy
10530035203Idle Speed ScrewBuy
11530035208Idle Speed Spring
12530035028Metering Lever PinIncluded in Carb. Kwik Repair Kit, P/N 530-035264
13530035031Metering LeverIncluded in Carb. Kwik Repair Kit, P/N 530-035264Buy
14530035188Metering Lever SpringIncluded in Carb. Kwik Repair Kit, P/N 530-035264Buy
15530035106Inlet Needle ValveIncluded in Carb. Kwik Repair Kit, P/N 530-035264
16530035178Fuel Inlet ScreenIncluded in Carb. Kwik Repair Kit, P/N 530-035264Buy
17530035016Metering Lever Pin ScrewIncluded in Carb. Kwik Repair Kit, P/N 530-035264
18530035264Carb. Kwik Repair KitIncludes items 1,2,3,8,9,12-17Buy
19530035219Carb. Gasket/Diaphragm KitIncludes items 1,2,3,8,9
530035560Carburetor Adjustment ToolNot shownBuy
CP7826Compression TesterNot ShownBuy
