W25CBK / W25CB
W25CBK Parts
| ID | Part Number | W25CBK Handle Part Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 530057991 | Throttle Cable Assembly | Buy | |
| 2 | 530058000 | TRIGGER WE YE | Buy | |
| 3 | 530057582 | HSG THROTTLE | ||
| 4 | 530015880 | SCREW 10 14 X | Buy | |
| 5 | 530015821 | BOLT 1/4 20 X | ||
| 6 | 545008061 | ASSY DSHAFT U | ||
| 7 | 530057581 | HSG THROTTLE | ||
| 8 | 530071747 | KIT 3/4 ASSI | Buy | |
| 9 | 530091373 | NUT D HANDL | Buy | |
| 11 | 581535001 | DRIVESHAFT KIT KD COU | ||
| 15 | 581494907 | KIT DRIVE SHAFT ASSY | ||
| 16 | 530052286 | LINE LIMITER | ||
| 17 | 530016349 | SCREW | Buy | |
| 18 | 530015820 | BOLT SQ. HEAD | Buy | |
| 19 | 581494801 | SHIELD KIT | ||
| 21 | 952711621 | Trimmer Head | Buy | |
| 22 | 530071306 | KIT ASSY HUB | Buy | |
| 23 | 530053241 | SPRING RETURN | Buy | |
| 24 | 530401957 | RETAINER SPOO | Buy | |
| 25 | 952711616 | ACCY T G VI RH 080 | Buy |

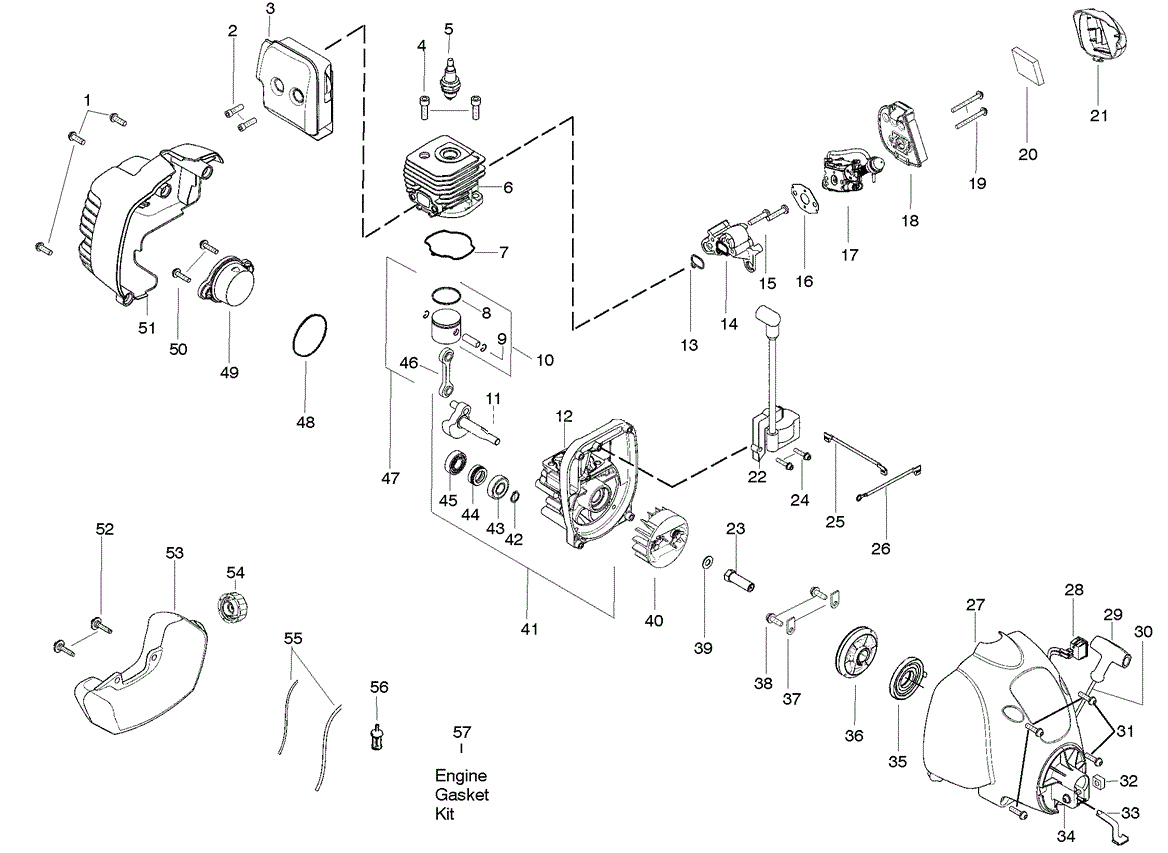

W25CBK Engine Parts
| ID | Part Number | W25CBK Engine Part Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 530015814 | Screw | Buy | |
| 2 | 530058982 | Bolt-Muffler | Buy | |
| 3 | 545227901 | Assy-Muffler/Shield | Incl. 2 | |
| 4 | 530015953 | Screw-Cylinder | Buy | |
| 5 | 952030249 | Spark Plug (RCJ6Y) | Buy | |
| 6 | 530012541 | Cylinder | ||
| 8 | 545154001 | Piston Ring | Buy | |
| 9 | 530015162 | Wrist Pin Retainer | Buy | |
| 10 | 530071833 | Kit- Piston | Incl. 8, 9 | Buy |
| 11 | 530057829 | Assembly - Crankshaft | ||
| 12 | 530012582 | Assy-Crankcase | Incl. 43,44,45 | |
| 14 | 530057547 | Adapter - Carb | ||
| 15 | 530016441 | Screw | ||
| 17 | 577135902 | Carburetor Assembly | ||
| 17b | 581479401 | Bulb,Purge(w/shaft) | w/shaft | |
| 18 | 530057585 | Air Box | ||
| 19 | 530016428 | Screw 10-10 X 2.15 | ||
| 20 | 530057781 | Foam - Air Filter | Buy | |
| 21 | 576694401 | Cover, Air Box | ||
| 22 | 578287001 | Ignition Module | ||
| 23 | 530038604 | Coupling - Drive | Buy | |
| 24 | 545003903 | Screw | ||
| 25 | 530014663 | Lead Wire | ||
| 26 | 581425901 | Assy,Ground Wire | ||
| 27 | 580410802 | Assy.,Fan Hsg | ||
| 28 | 545081869 | Kit - Switch | ||
| 29 | 530027569 | Starter Handle | Buy | |
| 30 | 530071798 | Kit - Rope | ||
| 31 | 530016386 | Screw | Buy | |
| 32 | 530016124 | Nut | ||
| 33 | 530057588 | Clip - Spring | ||
| 34 | 530016430 | Screw | ||
| 35 | 545008014 | Spring-Starter | ||
| 36 | 545050407 | Kit-Starter Pulley | Buy | |
| 37 | 530027523 | Retainer | Buy | |
| 38 | 530016224 | Screw | ||
| 39 | 530015828 | Washer | Buy | |
| 40 | 545221701 | Assembly - Flywheel | ||
| 41 | 530071768 | Assembly - C Case & C Shaft | Incl. 11,12,42 | |
| 42 | 530015941 | Retaining Ring | Buy | |
| 43 | 530055728 | Outer Bearing | ||
| 44 | 530019264 | Seal - C'Case | Buy | |
| 45 | 530032125 | Inner Bearing | Buy | |
| 46 | 530049817 | Assembly - Connecting Rod | ||
| 47 | 530071785 | Kit - Piston/Rod | Incl. 10 and 46 | |
| 49 | 530057954 | Assembly - Plug | Incl.48 | |
| 50 | 530016386 | Screw | Buy | |
| 51 | 545011004 | Shroud - Rear | ||
| 52 | 530016445 | Retainer - Tank | ||
| 53 | 581263701 | Assy-Fuel Tank | Incl. filter, lines and fuel cap | Buy |
| 54 | 579746601 | Assy,Fuel Cap | ||
| 56 | 530095646 | Filter | Buy | |
| 57 | 530071750 | Gasket Kit 25CC | Incl. 7,13,16,48 | Buy |
