Weedeater 1000

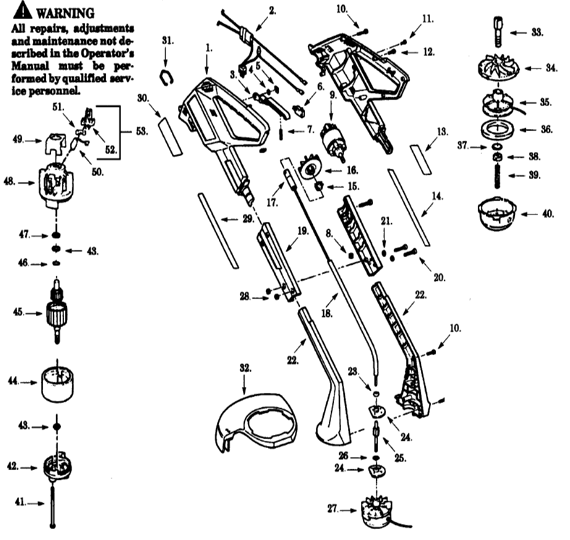

Weedeater 1000 Parts
| # | Part # | Weedeater 1000 Part Name | Note |
|---|---|---|---|
| 1 | 534787902 | Motor Hsg. Set | |
| 2 | 534789301 | Harness | |
| 3 | 534788305 | Trigger | |
| 4 | 534790800 | Push Nut | |
| 5 | 534789000 | Switch | |
| 6 | 534790700 | Trigger Spring | |
| 7 | 534808100 | Square Nut | |
| 8 | 534768301 | Motor Assembly | |
| 9 | 534222400 | Screw | |
| 10 | 534731402 | Screw | |
| 11 | 534222402 | Screw | |
| 12 | 534798700 | Warning Label | |
| 13 | 534789600 | Logo Label | |
| 14 | 534845900 | Logo Label | |
| 15 | 534560103 | Fan Clamp | |
| 16 | 534526802 | Fan | |
| 17 | 534788505 | Flex Shaft Assembly | |
| 18 | 534788902 | Sleeve Tubing | |
| 19 | 534788102 | Housing Clamp | |
| 20 | 534799500 | Screw | |
| 21 | 530015629 | Washer | |
| 22 | 534788005 | Spindle Housing | |
| 23 | 534636002 | Washer | |
| 24 | 534790600 | Bearing Holder Disk | |
| 25 | 534789901 | Shaft Adapter | |
| 26 | 534228802 | Washer | |
| 27 | 534167011 | Model PT1000-01,PT1200-01,PT1000-01A | |
| 28 | 534790500 | Nut | |
| 29 | 534789400 | Logo Label (R) | |
| 30 | 534799400 | Nameplate Label | |
| 31 | 534270100 | Hanger Bracket | |
| 32 | 534790200 | Guard Assembly | |
| 33 | 534787800 | Shaft Adapter | |
| 34 | 534167215 | Rear Plate | |
| 35 | 534167805 | Spool & Line | |
| 36 | 534167701 | Foam Pad | |
| 37 | 534316200 | O-Ring | |
| 38 | 534166700 | Adapter Nut | |
| 39 | 534819200 | Spring | |
| 40 | 534167935 | Hub Assembly | |
| 41 | 534228703 | Screw | |
| 42 | 534207101 | Endbell Assembly (Drive) | |
| 43 | 534228800 | Washer | |
| 44 | 534227004 | Field Assembly | |
| 45 | 534767701 | Armature Assembly | |
| 46 | 534246700 | Retaining Ring | |
| 47 | 534238903 | Washer | |
| 48 | 534227501 | Endbell Assembly (Brush) | |
| 49 | 534226000 | Insulator | |
| 50 | 534227800 | Carbon Brush | |
| 51 | 534228000 | Spring Brush | |
| 52 | 534227700 | Brush Holder |
