Weedeater 1210

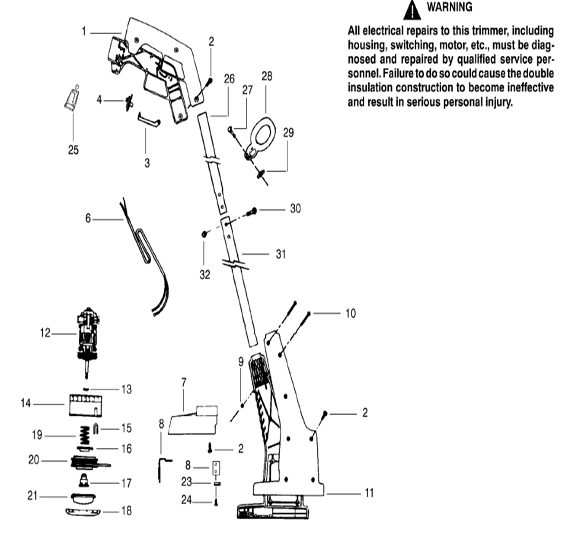

Weedeater 1210 Parts
| # | Part # | Weedeater 1210 Part Name | Note |
|---|---|---|---|
| 1 | 530402060 | Upper Handle Set | |
| 2 | 530352036 | Screw | |
| 3 | 530347654 | Trigger | |
| 4 | 530347897 | On/Off Switch | |
| 6 | 530401672 | Wiring Harness | |
| 7 | 530351805 | Shield 12" | |
| 7 | 530351804 | Shield 10" | |
| 8 | 530351802 | Line Limiter | |
| 8 | 530350362 | Line Limiter | |
| 9 | 534790500 | Nut | |
| 10 | 530348050 | Screw | |
| 11 | 530400117 | Motor Hsg. Set | |
| 11 | 530351809 | Motor Hsg. Set | |
| 12 | 530400772 | Motor Ass'y. | |
| 12 | 530401211 | Motor Ass'y. | |
| 12 | 530347696 | Motor Assembly | |
| 13 | 530001717 | Coupling Washer | |
| 14 | 530400008 | Hub | |
| 14 | 530400008 | Hub | |
| 15 | 530340594 | Line Saver | |
| 16 | 530340732 | Spring Cap | |
| 17 | 530350366 | Drive Gear Ass'y. | |
| 18 | 530400007 | Cover | |
| 19 | 530340006 | Spring | |
| 20 | 952701521 | Spool w/Line | |
| 21 | 530400009 | Tap Button | |
| 23 | 530351801 | Blade Cover | |
| 24 | 530351800 | Screw | |
| 25 | 530347653 | Cord Retainer | |
| 26 | 530348741 | Upper Tube | |
| 27 | 530340228 | Bolt | |
| 28 | 530322295 | Assist Handle | |
| 29 | 530091373 | Wingnut | |
| 30 | 530016113 | Screw | |
| 31 | 530401367 | Lower Tube Assy. | |
| 32 | 530403094 | Nut |
