Weedeater 1400 Gas

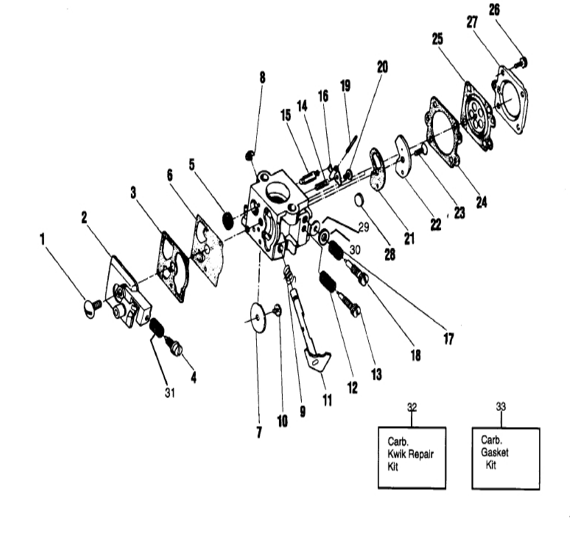

Weedeater 1400 Carburetor Parts

1400 Gas Carburetor

#Part #Weedeater 1400 Carburetor Part NameNote
1530035017Screw - Pump CoverIncluded in Carburetor Kwik Repair Kit.
2530035191Cover Fuel PumpIncl. #4
3530035164Gasket-Fuel Pump
4530035156Idle Speed ScrewWA-149 & WT-63
4530035203Idle Speed ScrewWA-198
5530035178Screen-Fuel InletIncluded in Carburetor Kwik Repair Kit.
6530035166Diaphragm-Fuel Pump
7530035133Valve - ThrottleWA-149
7530035254Throttle ValveWT-63 & WA-198
8530035007Ring-Throttle Retainer
9530035138Spring---Throttle Return
10530035015Screw-Throttle ValveIncluded in Carburetor Kwik Repair Kit.
11530035132Shaft Assembly-Throttle
12530035023Idle Needle Spring
13530035141Idle Needle
14530035139Spring-Metering LeverIncluded in Carburetor Kwik Repair Kit.
15530035106Valve-Inlet NeedleIncluded in Carburetor Kwik Repair Kit.
16530035031Lever-Metering
17530035036Spring-High Speed NeedleWA-149
17530035293Needle Spring-Low SpeedWT-63
17530035293Needle Spring-Low SpeedWA-198
18530035142Hi Speed NeedleWA-149
18530035255Hi Speed NeedleWT-63
18530035212Mixture NeedleWA-198
19530035028Pin - Metering LeverIncluded in Carburetor Kwik Repair Kit.
20530035016Screw - Metering Lever Pin
21530035147Circuit Plate GasketWA-149
21530035211Circuit Plate GasketWA-198
21530035042Plate-CircuitWA-149
22530035261PlateWA-198
23530035137Screw-Circuit PlateWA-149 & WA-198
24530035151Gasket-Metering Diaphragm
25530035014Diaphragm-Metering
26530035153Screw - Assembly - Metering Cover & Throttle Shaft ClipWA-149
26530035021Screw Assembly-Metering CoverWT-63 & WA-198
27530035149Cover - Metering DiaphragmWA-149
27530035003Cover-Metering DiaphragmWT-63 & WA-198
28530035162Plug-5/16 Dia WelchIncluded in Carburetor Kwik Repair Kit.
29530035218"O" Ring Mixture
30530035217Mixture Needle Washer
31530035121Spring - Idle Screw
32530035185Carb. Gasket/Diaphragm KitWA-149
32530035199Kit-Carb. Kwik RepairWT-63
32530035220Kit-Kwik RepairWA-198
B8530401183Button-Black
C61507475326Spark Plug Boot
C77065-01497-50Spark Plug BM4A

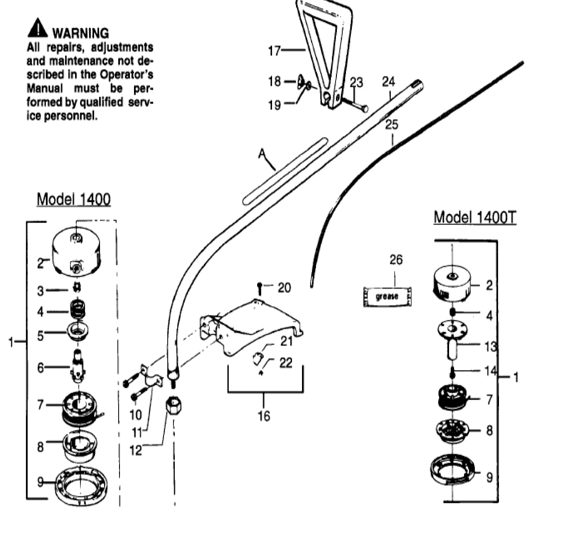

Weedeater 1400 Parts

1400 gas

#Part #Weedeater 1400 Gas Part NameNote
1952701574Cutting Head Assembly
2530071295Assy-Hub (W/Line Sa
3530093898Line Saver - New Style only
4530340007Spring
5530328929Cap-Spring
6530093897Drive Gear New Style
7952701523Spool, Wound
8530401183Button-Black
9530092133Cover
11530093653Shield Bracket
12530093716Dust Cup-Die Cast(H
13530069312Kit-Locking Plate
14530071567Screw-Taptite(Sems1
18530091373Wingnut
19530015149Washer-Barclamp Screw
20530015337Screw
22530015653Nut
24530093943Assy-Drive Shaft Hs
25530093935Drive Shaft
C61507475326Spark Plug Boot
C77065-01497-50Spark Plug BM4A

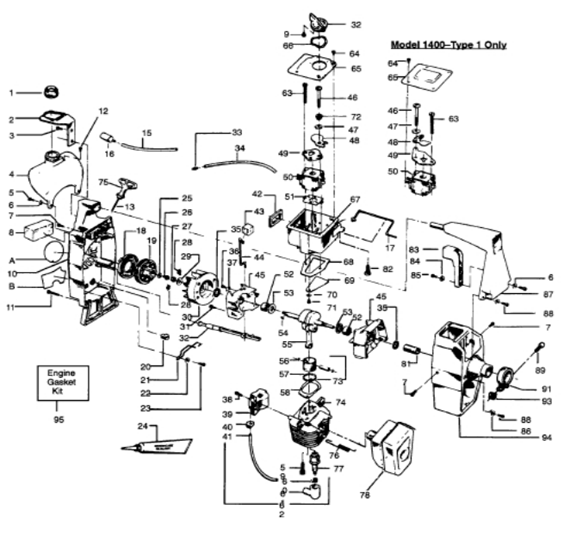

Weedeater 1400 Engine Parts

1400 gas engine

#Part #Weedeater 1400 Engine Part NameNote
B8530401183Button-Black
1530014347Fuel Cap (w/ retainer)
2530025377Bracket-Fuel Tank
4530010887Assy-Fuel Tank (Ser
5530015509Screw
6530015123Washer
7530015715Screw 10-25X3/8
8530024371Air Filter
9530015740Screw-Knob/Actuator
10530010891Assy-Fan Hsg (Gy)
11530015594Screw-10-14X1-1/8 B
12530026119Check Valve
13530069232Rope (3 ft.)
15530069571Return Line
15530069247Kit - Line Carb/Purge
16530091878Fuel Filter Assembly
16530095646Fuel Pick-up Ass'y.
17530027190Wire-Throttle
18545008009Starter Spring
19530026048Pulley-Starter
20530026679Button - Kill Switch
21530026559Spring-Kill Switch
22530015382Washer
23530015407Screw
24530030054Crankcase Sealant
25530015123Washer
26530015479Screw
27530626605Flywheel Nut
28530023817Starter Dog Spring
29530015127Flywheel Washer
30530039114Flywheel Assembly
31530015369Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
32530024303Knob - Choke
32530027101Choke Knob
33530025472Fuel Line Fitting
33530026981Fuel Line Fitting
34530021073Line-Fuel (Carb)
35530019059Crankcase SealIncluded in Carburetor Kwik Repair Kit.
36530015004Screw
37530023661Clamp - Module Lead
38530015816Screw
39530069181Kit - Ignition Module
40530024435Plug Wire Grommet
41530039082High Tension Lead Wire
42530019105Carburetor Case SealIncluded in Carburetor Kwik Repair Kit.
43530023373Throttle Wire Boot
44530026236Wire-Choke
45530010757Crankcase AssemblyIncl. #35, 52 & Qty 1 of #31
46530015404Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder
46530015630Screw
47530015254Wave Washer
48530024558Choke Shutter
48530026772Choke Shutter
49530026237Choke-Guide Plate
49530026797Choke-Guide Plate
50530035183CarburetorWA-149
51530019157Carburetor GasketIncluded in Carburetor Kwik Repair Kit.
52530032029Crankshaft Bearing
53530015351Washer
54530015126Flywheel Key
56530015162Wrist Pin Retainer
57530026413Ring Piston
58530069219Engine Gasket KitIncluded in Carburetor Kwik Repair Kit.
59530015239Screw
60507475326Spark Plug Boot
61507475326Spark Plug Boot
61530003934Spark Plug Boot
62530039103High Tension Lead Assembly
63530015379Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor
63530015674Screw
64530015235Screw
65530026029Cover-Carburetor Ca
65530027100Cover-Carb. Case
66530015741Washer-Wave
67530010453Case-Carb
67530027189Case-Carb
68530019108Carburetor Case to Crankcase GasketIncluded in Carburetor Kwik Repair Kit.
69530024438Reed Valve
70530023367Washer
71530015241Screw
72530015673Spacer
73530069274Piston Kit
74530012244Cylinder
75530056402Handle-Starter
76530036409Muffler Attachment Spring
77065-01497-50Spark Plug BM4A
81530093925Adaptor-Drive
82530015723Screw
83530025342Trigger-Throttle
84530015382Washer
85530015407Screw
87530025704Handle
88530015163Screw
89530015609Bolt-1/4-20 X 9/16
91530026560Clamp-Shroud
93530015610Nut
95530069219Engine Gasket Kit
C530027672Shroud Decal (Right)
C530027673Shroud Decal (Right)
