Weedeater 1600T

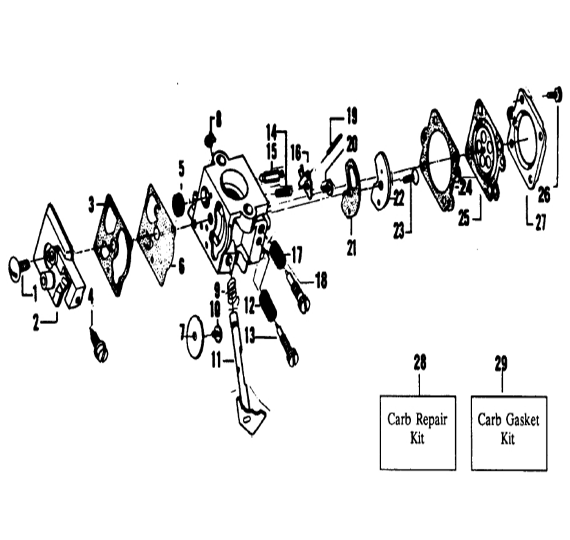

Weedeater 1600T Carburetor Parts
| # | Part # | Weedeater 1600T Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 2 | 530035191 | Cover Fuel Pump | Incl. 4 |
| 3 | 530035164 | Gasket-Fuel Pump | |
| 4 | 530035156 | Idle Speed Screw | |
| 5 | 530035178 | Screen-Fuel Inlet | Included in Carburetor Kwik Repair Kit. |
| 6 | 530035166 | Diaphragm-Fuel Pump | |
| 7 | 530035133 | Valve - Throttle | |
| 8 | 530035007 | Ring-Throttle Retainer | |
| 9 | 530035138 | Spring---Throttle Return | |
| 10 | 530035015 | Screw-Throttle Valve | |
| 11 | 530035132 | Shaft Assembly-Throttle | |
| 12 | 530035023 | Idle Needle Spring | |
| 13 | 530035141 | Idle Needle | |
| 14 | 530035139 | Spring-Metering Lever | |
| 15 | 530035106 | Valve-Inlet Needle | |
| 16 | 530035031 | Lever-Metering | |
| 17 | 530035036 | Spring-High Speed Needle | |
| 18 | 530035142 | Hi Speed Needle | |
| 19 | 530035028 | Pin - Metering Lever | Included in Carburetor Kwik Repair Kit. |
| 20 | 530035016 | Screw - Metering Lever Pin | |
| 21 | 530035147 | Circuit Plate Gasket | |
| 22 | 530035042 | Plate-Circuit | |
| 23 | 530035137 | Screw-Circuit Plate | Included in Carburetor Kwik Repair Kit. |
| 24 | 530035151 | Gasket-Metering Diaphragm | |
| 25 | 530035014 | Diaphragm-Metering | |
| 26 | 530035153 | Screw - Assembly - Metering Cover & Throttle Shaft Clip | |
| 27 | 530035149 | Cover - Metering Diaphragm | |
| 28 | 530035185 | Carb. Gasket/Diaphragm Kit |

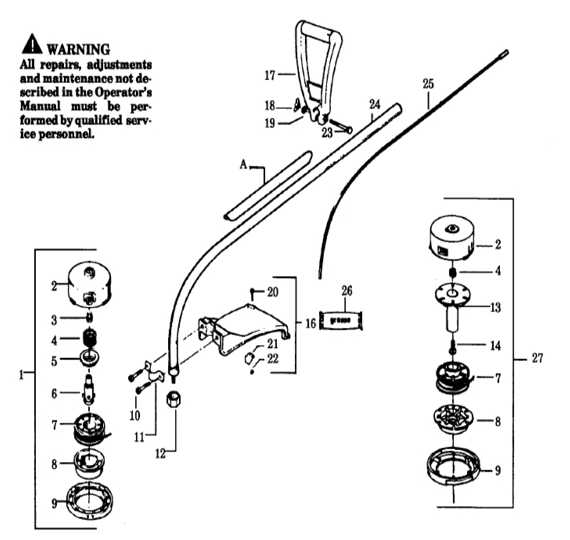

Weedeater 1600T Parts
| # | Part # | Weedeater 1600TPart Name | Note |
|---|---|---|---|
| 1 | 952701574 | Cutting Head Assembly | |
| 2 | 530094562 | Assy-Hub & Shaft | |
| 4 | 530094956 | Spring | |
| 7 | 952701606 | Accy-W/E Spool Tng | |
| 8 | 530094522 | Button-Release | |
| 9 | 530094521 | Cover | |
| 11 | 530093653 | Shield Bracket | |
| 12 | 530093716 | Dust Cup-Die Cast(H | |
| 13 | 530094562 | Assy-Hub & Shaft | |
| 14 | 530071567 | Screw-Taptite(Sems1 | |
| 16 | 530069249 | Shield W/ Cutter Blade | |
| 17 | 530010722 | "D" Handle | |
| 18 | 530091373 | Wingnut | |
| 19 | 530092062 | Washer - Cylinder Cover | |
| 20 | 530015337 | Screw | |
| 21 | 530094570 | Line Limiter | |
| 22 | 530015653 | Nut | |
| 24 | 530071643 | Assy-Drive Shaft Hs | |
| 25 | 530093936 | Shaft-Flex Drive | |
| 27 | 952701574 | Cutting Head Assembly | |
| BA | 530029159 | Shaft Warning Decal | |
| BA | 530067060 | Manual-Operators |

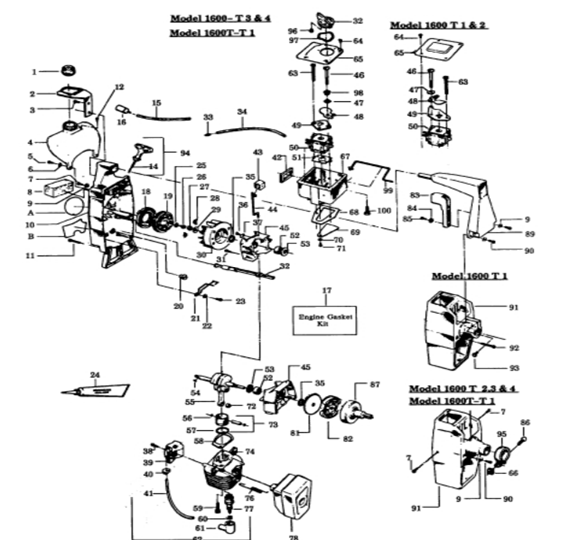

Weedeater 1600T Engine Parts
| # | Part # | Weedeater 1600T Engine Part Name | Note |
|---|---|---|---|
| 1 | 530014347 | Fuel Cap (w/ retainer) | Incl. "O" Ring |
| 2 | 530025377 | Bracket-Fuel Tank | |
| 4 | 530010887 | Assy-Fuel Tank (Ser | |
| 5 | 530015509 | Screw | |
| 6 | 530015123 | Washer | |
| 7 | 530015715 | Screw 10-25X3/8 | |
| 8 | 530024371 | Air Filter | |
| 10 | 530010891 | Assy-Fan Hsg (Gy) | |
| 11 | 530015594 | Screw-10-14X1-1/8 B | |
| 12 | 530026119 | Check Valve | |
| 14 | 530069232 | Rope (3 ft.) | |
| 15 | 530069247 | Kit - Line Carb/Purge | |
| 16 | 530095646 | Fuel Pick-up Ass'y. | |
| 17 | 530069219 | Engine Gasket Kit | |
| 18 | 545008009 | Starter Spring | |
| 19 | 530026048 | Pulley-Starter | |
| 20 | 530026679 | Button - Kill Switch | |
| 21 | 530026559 | Spring-Kill Switch | |
| 22 | 530015382 | Washer | |
| 23 | 530015407 | Screw | |
| 24 | 530030054 | Crankcase Sealant | |
| 25 | 530015123 | Washer | |
| 26 | 530015479 | Screw | |
| 27 | 530626605 | Flywheel Nut | |
| 28 | 530023817 | Starter Dog Spring | |
| 29 | 530015127 | Flywheel Washer | |
| 30 | 530039114 | Flywheel Assembly | |
| 31 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 32 | 530027101 | Choke Knob | |
| 33 | 530026981 | Fuel Line Fitting | |
| 34 | 530021073 | Line-Fuel (Carb) | |
| 35 | 530019059 | Crankcase Seal | Included in Engine Gasket Kit. |
| 38 | 530015816 | Screw | |
| 39 | 530069181 | Kit - Ignition Module | |
| 40 | 530024435 | Plug Wire Grommet | |
| 41 | 530039082 | High Tension Lead Wire | |
| 42 | 530019105 | Carburetor Case Seal | Included in Engine Gasket Kit. |
| 45 | 530010757 | Crankcase Assembly | |
| 46 | 530015630 | Screw | |
| 47 | 530015254 | Wave Washer | |
| 48 | 530026772 | Choke Shutter | |
| 49 | 530026797 | Choke Guide Plate | |
| 50 | 530035183 | Carburetor | |
| 51 | 530019157 | Carburetor Gasket | |
| 52 | 530019157 | Carburetor Gasket | |
| 53 | 530032029 | Crankshaft Bearing | |
| 54 | 530015351 | Washer | |
| 55 | 530015126 | Flywheel Key | |
| 56 | 530010844 | Assy-Crankshaft | |
| 57 | 530015162 | Wrist Pin Retainer | |
| 58 | 530027369 | Ring-Piston | |
| 59 | 530069219 | Engine Gasket Kit | Included in Engine Gasket Kit. |
| 60 | 530015239 | Screw | |
| 61 | 507475326 | Spark Plug Boot | |
| 62 | 530003934 | Spark Plug Boot | |
| 63 | 530039103 | High Tension Lead Assembly | |
| 64 | 530015674 | Screw | |
| 65 | 530015235 | Screw | |
| 66 | 530027100 | Cover-Carb. Case | |
| 67 | 530015610 | Nut | |
| 68 | 530027189 | Case-Carb | |
| 69 | 530019108 | Carburetor Case to Crankcase Gasket | Included in Engine Gasket Kit. |
| 70 | 530024438 | Reed Valve | |
| 71 | 530023367 | Washer | |
| 72 | 530015241 | Screw | |
| 73 | 530032092 | Piston Pin Bearing | |
| 74 | 530069240 | Kit-Piston | |
| 76 | 530012247 | Cylinder | |
| 77 | 530036409 | Muffler Attachment Spring | |
| 78 | 530030077 | Spark Plug | |
| 81 | 530069243 | Kit-Muffler Body | |
| 82 | 530069196 | Kit - Clutch Washer (3/8" Flat) | |
| 83 | 530069194 | Kit - Clutch Assembly | Incl. Clutch Washer |
| 84 | 530025342 | Trigger-Throttle | |
| 85 | 530015382 | Washer | |
| 86 | 530015407 | Screw | |
| 87 | 530015609 | Bolt-1/4-20 X 9/16 | |
| 88 | 530010902 | Assy-Drum & Couplin | |
| 89 | 530025704 | Handle | |
| 90 | 530015163 | Screw | |
| 91 | 530026549 | Shroud | |
| 95 | 530026560 | Clamp-Shroud | |
| 96 | 530015740 | Screw-Knob/Actuator | |
| 97 | 530015741 | Washer-Wave | |
| 98 | 530015673 | Spacer | |
| 99 | 530027190 | Wire-Throttle | |
| 100 | 530015723 | Screw | |
| CA | 530027312 | Starting Instructions Decal | |
| CB | 530027116 | Decal |
