Weedeater 1740

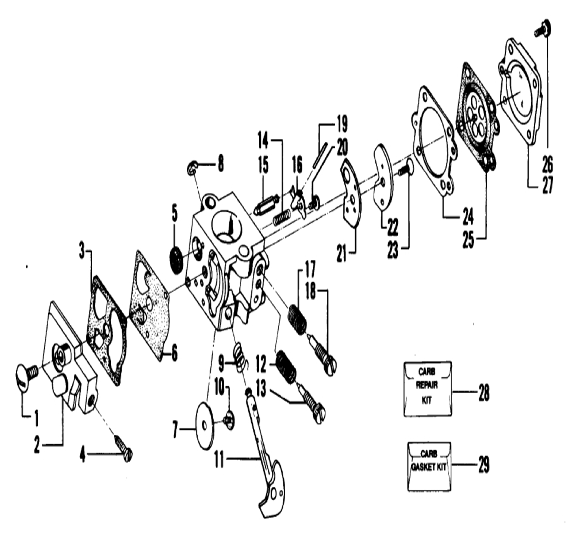

Weedeater 1740 Carburetor Parts
| # | Part # | Weedeater 1740 Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 2 | 530035191 | Cover Fuel Pump | Incl. 4 |
| 3 | 530035164 | Gasket-Fuel Pump | |
| 4 | 530035156 | Idle Speed Screw | |
| 5 | 530035178 | Screen-Fuel Inlet | |
| 6 | 530035166 | Diaphragm-Fuel Pump | |
| 7 | 530035133 | Valve - Throttle | |
| 8 | 530035007 | Ring-Throttle Retainer | |
| 9 | 530035138 | Spring---Throttle Return | |
| 10 | 530035015 | Screw-Throttle Valve | |
| 11 | 530035132 | Shaft Assembly-Throttle | |
| 12 | 530035023 | Idle Needle Spring | |
| 13 | 530035141 | Idle Needle | |
| 14 | 530035139 | Spring-Metering Lever | |
| 15 | 530035106 | Valve-Inlet Needle | |
| 16 | 530035031 | Lever-Metering | |
| 17 | 530035036 | Spring-High Speed Needle | |
| 18 | 530035142 | Hi Speed Needle | |
| 19 | 530035028 | Pin - Metering Lever | |
| 20 | 530035016 | Screw - Metering Lever Pin | |
| 21 | 530035147 | Circuit Plate Gasket | |
| 22 | 530035042 | Plate-Circuit | |
| 23 | 530035137 | Screw-Circuit Plate | |
| 24 | 530035151 | Gasket-Metering Diaphragm | |
| 25 | 530035014 | Diaphragm-Metering | |
| 26 | 530035153 | Screw - Assembly - Metering Cover & Throttle Shaft Clip | |
| 27 | 530035149 | Cover - Metering Diaphragm | |
| 28 | 530035185 | Carb. Gasket/Diaphragm Kit |

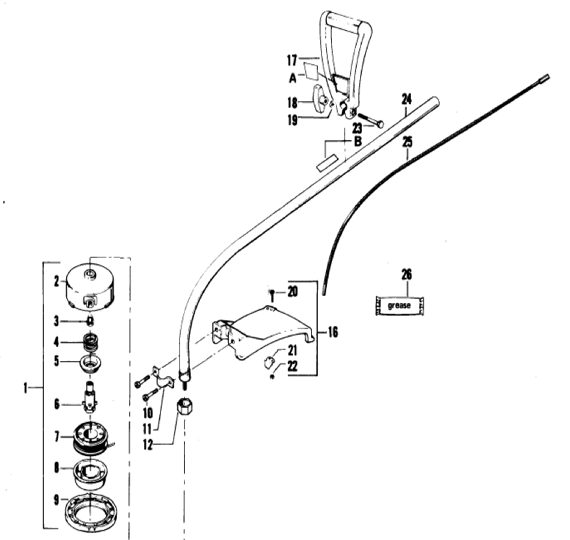

Weedeater 1740 Parts
| # | Part # | Weedeater 1740 Part Name | Note |
|---|---|---|---|
| 1 | 952701574 | Cutting Head Assembly | |
| 2 | 530071295 | Assy-Hub (W/Line Sa | |
| 3 | 530093898 | Line Saver - New Style only | |
| 4 | 530340007 | Spring | |
| 5 | 530328929 | Cap-Spring | |
| 6 | 530093897 | Drive Gear New Style | |
| 7 | 952701523 | Spool, Wound | |
| 8 | 530401183 | Button-Black | |
| 9 | 530092133 | Cover | |
| 11 | 530093653 | Shield Bracket | |
| 12 | 530093716 | Dust Cup-Die Cast(H | |
| 17 | 530010722 | "D" Handle | |
| 18 | 530092059 | Knob - 1/4 - 20" - Model 2610 | |
| 19 | 530092062 | Washer - Cylinder Cover | |
| 20 | 530015337 | Screw | |
| 21 | 530094570 | Line Limiter | |
| 23 | 530340228 | Bolt | |
| 24 | 530071640 | Assy-Drive Shaft Hs | |
| 25 | 530093928 | Assy-Flex Shaft | |
| BA | 530026225 | Decal-"D" Handle | |
| BB | 530026228 | Decal - Warning |

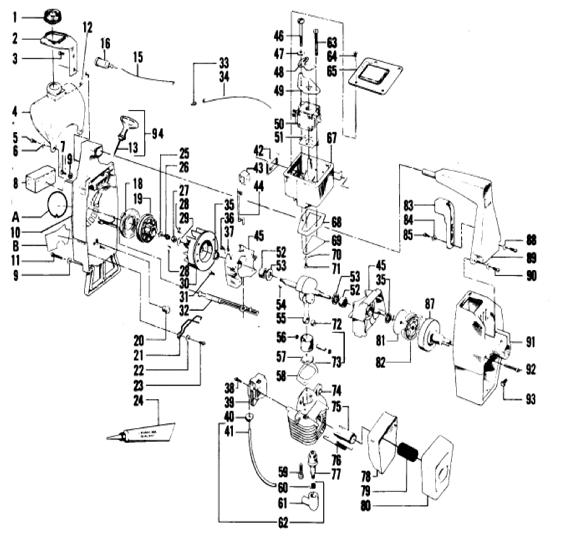

Weedeater 1740 Engine Parts
| # | Part # | Weedeater 1740 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530014347 | Fuel Cap (w/ retainer) | |
| 2 | 530025377 | Bracket-Fuel Tank | |
| 4 | 530010771 | Fuel Tank Ass'y. | Incl. 1, 12, 15 & 16 |
| 5 | 530015509 | Screw | |
| 6 | 530015123 | Washer | |
| 7 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 8 | 530024371 | Air Filter | |
| 9 | 530015274 | Washer - Plain Type "B" | |
| 11 | 530015305 | Screw - 10 - 24 X 1-3/16" - Fil. Hd. | |
| 12 | 530026119 | Check Valve | |
| 13 | 530069232 | Rope (3 ft.) | |
| 15 | 530069571 | Return Line | |
| 16 | 530091878 | Fuel Filter Assembly | |
| 18 | 545008009 | Starter Spring | |
| 19 | 530026048 | Pulley-Starter | |
| 20 | 530026679 | Button - Kill Switch | |
| 21 | 530026559 | Spring-Kill Switch | |
| 23 | 530015382 | Washer | |
| 24 | 530015407 | Screw | |
| 25 | 530030054 | Crankcase Sealant | |
| 26 | 530015123 | Washer | |
| 27 | 530015479 | Screw | |
| 28 | 530626605 | Flywheel Nut | |
| 29 | 530023817 | Starter Dog Spring | |
| 30 | 530015127 | Flywheel Washer | |
| 31 | 530039114 | Flywheel Assembly | Incl. 28 |
| 32 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 33 | 530024303 | Knob - Choke | |
| 35 | 530025472 | Fuel Line Fitting | |
| 36 | 530019059 | Crankcase Seal | |
| 37 | 530015004 | Screw | |
| 38 | 530023661 | Clamp - Module Lead | |
| 39 | 530015816 | Screw | |
| 40 | 530069181 | Kit - Ignition Module | Incl. 21 |
| 41 | 530024435 | Plug Wire Grommet | |
| 42 | 530039082 | High Tension Lead Wire | |
| 43 | 530019105 | Carburetor Case Seal | |
| 44 | 530023373 | Throttle Wire Boot | |
| 45 | 530026236 | Wire-Choke | |
| 46 | 530010316 | Crankcase Assembly | Incl. 35, 52 and Qty. 4 of 31 |
| 47 | 530015404 | Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder | |
| 48 | 530015254 | Wave Washer | |
| 49 | 530024558 | Choke Shutter | |
| 50 | 530026237 | Choke-Guide Plate | |
| 51 | 530035183 | Carburetor | Wa-149A |
| 52 | 530019157 | Carburetor Gasket | |
| 53 | 530032029 | Crankshaft Bearing | |
| 54 | 530015351 | Washer | |
| 55 | 530015126 | Flywheel Key | |
| 56 | 530026675 | Assy-C'Shaft & Rod | |
| 57 | 530015162 | Wrist Pin Retainer | |
| 58 | 530024929 | Model 1800, Piston Ring | |
| 59 | 530069219 | Engine Gasket Kit | |
| 60 | 530015239 | Screw | |
| 61 | 507475326 | Spark Plug Boot | |
| 62 | 530003934 | Spark Plug Boot | |
| 63 | 502271102 | High Tension Lead Assembly | |
| 64 | 530015379 | Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor | |
| 65 | 530015235 | Screw | |
| 66 | 530026029 | Cover-Carburetor Ca | |
| 67 | 530010453 | Case-Carb | |
| 68 | 530019108 | Carburetor Case to Crankcase Gasket | |
| 69 | 530024438 | Reed Valve | |
| 70 | 530023367 | Washer | |
| 71 | 530015241 | Screw | |
| 72 | 530032057 | Bearing - Wrist Pin | |
| 74 | 530012191 | Cylinder (28.0CC) | |
| 75 | 530026949 | Diffuser-Muffler | |
| 76 | 530036409 | Muffler Attachment Spring | |
| 77 | 530030077 | Spark Plug | |
| 78 | 530024362 | Body - Muffler | |
| 79 | 530024364 | Screen - Spark Arresting | |
| 80 | 530024361 | Cover - Muffler | |
| 81 | 530069196 | Kit - Clutch Washer (3/8" Flat) | |
| 82 | 530069194 | Kit - Clutch Assembly | |
| 83 | 530025342 | Trigger-Throttle | |
| 84 | 530015382 | Washer | |
| 85 | 530015407 | Screw | |
| 87 | 530010796 | Assy-Drum & Coupling | |
| 88 | 530015274 | Washer - Plain Type "B" | |
| 89 | 530025704 | Handle | |
| 90 | 530015163 | Screw | |
| 91 | 530012096 | Shroud | |
| 92 | 530015583 | Screw-10-24 X 1-1/2 | |
| 93 | 530625509 | Screw | |
| CA | 530025708 | Decal - Starting Instructions | |
| CB | 530026440 | Decal - Choke/OFF | |
| C | 530026607 | Decal - Shroud (Right) | |
| C | 530026608 | Decal-Shroud (L)(17) |

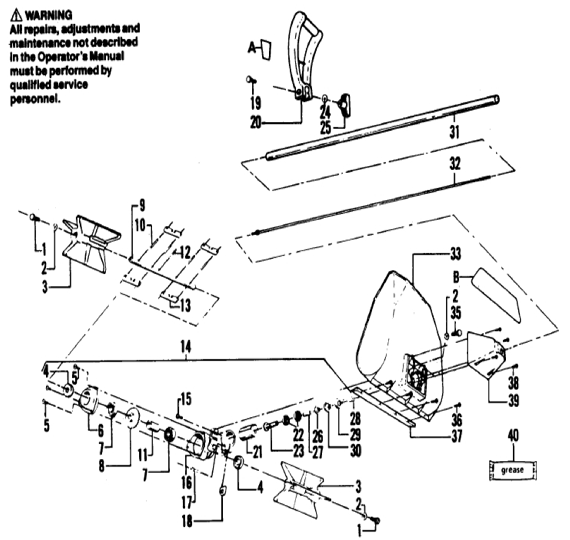

| # | Part # | Weedeater 1740 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530015426 | Bolt | |
| 2 | 530092062 | Washer - Cylinder Cover | |
| 3 | 530093883 | Impeller | |
| 4 | 530093119 | Oil Seal - Double Lip | |
| 5 | 530093865 | Screw - Gear Housing | |
| 6 | 530093864 | Gear Housing Cover | |
| 7 | 530093118 | Bearing - Shaft | |
| 8 | 530093867 | Gear - Spiral Bevel | |
| 9 | 530093117 | Output Shaft | |
| 10 | 530093034 | Pin - Spiral - Brace | |
| 11 | 530093807 | Collar - Shaft | |
| 12 | 501093124 | Pin Spiral - Gear | |
| D | 530093124 | Pin Spiral - Gear | |
| 13 | 530093036 | Brace - Impeller | |
| 14 | 530093861 | Gear Box Ass'y | Incl. 4-8, 11, 15-18 & 21-30 |
| 15 | 530015216 | Screw - Hand Guard OPTIONAL | |
| 16 | 530093866 | Gear Housing | |
| 17 | 530015239 | Screw | |
| 18 | 530092308 | Spacer 5/16 - Fiber - Pinch Clamp | |
| 19 | 530340228 | Bolt | |
| 20 | 530010722 | "D" Handle | |
| 21 | 530093863 | Sleeve - Housing | |
| 22 | 530092329 | Bearing - Open | |
| 23 | 530093868 | Pinion Gear - Spiral Bevel | |
| 24 | 530092062 | Washer - Cylinder Cover | |
| 25 | 530092059 | Knob - 1/4 - 20" - Model 2610 | |
| 26 | 530091573 | Snap Ring, Gear Housing | |
| 27 | 530093128 | Collar Pinion | |
| 28 | 530093875 | Plug - Grease | |
| 29 | 530093129 | Oil Seal - Single Lip | |
| 30 | 530091574 | Snap Ring, Gear Housing Bearing | |
| 31 | 530093933 | Drive Shaft Housing Ass'y. | Incl. 32 |
| 32 | 530093932 | Drive Shaft | |
| 33 | 530010726 | Housing - Impeller | |
| 35 | 530015459 | Screw - 1/4 - 20 x 3/4 | |
| 36 | 530015451 | Screw - Scraper Bar - #8 - 12 x 3/4" - Fil. Hd. | |
| 37 | 530093029 | Scraper Bar | |
| 38 | 530015451 | Screw - Scraper Bar - #8 - 12 x 3/4" - Fil. Hd. | |
| 39 | 530092563 | Cover - Rear | |
| DA | 530026225 | Decal-"D" Handle | |
| DB | 530026609 | Decal - Caution and Model | |
| D | 530060769 | Carton | |
| D | 530066424 | Operator's Manual |
