Weedeater 1900

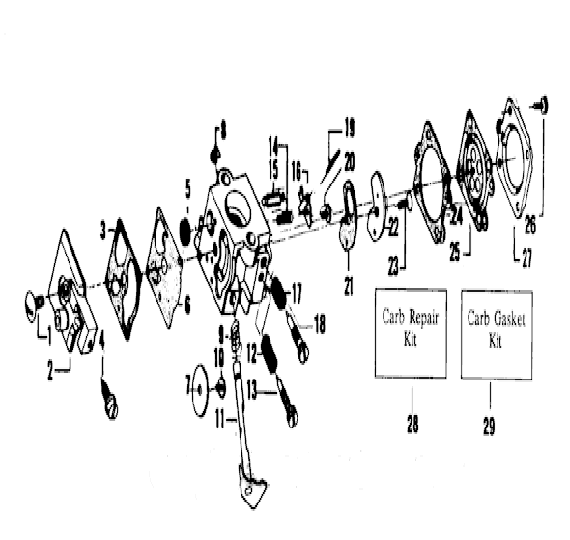

Weedeater 1900 Carburetor Parts
| # | Part # | Weedeater 1900 Carburetor Part Name | Note |
|---|---|---|---|
| 1 | 530035017 | Screw - Pump Cover | |
| 2 | 530035191 | Cover Fuel Pump | Incl. 4 |
| 3 | 530035164 | Gasket-Fuel Pump | |
| 4 | 530035156 | Idle Speed Screw | |
| 5 | 530035178 | Screen-Fuel Inlet | Included in Carburetor Kwik Repair Kit. |
| 6 | 530035166 | Diaphragm-Fuel Pump | |
| 7 | 530035133 | Valve - Throttle | |
| 8 | 530035007 | Ring-Throttle Retainer | |
| 9 | 530035138 | Spring---Throttle Return | |
| 10 | 530035015 | Screw-Throttle Valve | |
| 11 | 530035132 | Shaft Assembly-Throttle | |
| 12 | 530035023 | Idle Needle Spring | |
| 13 | 530035141 | Idle Needle | |
| 14 | 530035139 | Spring-Metering Lever | |
| 15 | 530035106 | Valve-Inlet Needle | |
| 16 | 530035031 | Lever-Metering | |
| 17 | 530035036 | Spring-High Speed Needle | |
| 18 | 530035142 | Hi Speed Needle | |
| 19 | 530035028 | Pin - Metering Lever | Included in Carburetor Kwik Repair Kit. |
| 20 | 530035016 | Screw - Metering Lever Pin | |
| 21 | 530035147 | Circuit Plate Gasket | |
| 22 | 530035042 | Plate-Circuit | |
| 23 | 530035137 | Screw-Circuit Plate | Included in Carburetor Kwik Repair Kit. |
| 24 | 530035151 | Gasket-Metering Diaphragm | |
| 25 | 530035014 | Diaphragm-Metering | |
| 26 | 530035153 | Screw - Assembly - Metering Cover & Throttle Shaft Clip | |
| 27 | 530035149 | Cover - Metering Diaphragm | |
| 28 | 530035185 | Carb. Gasket/Diaphragm Kit |

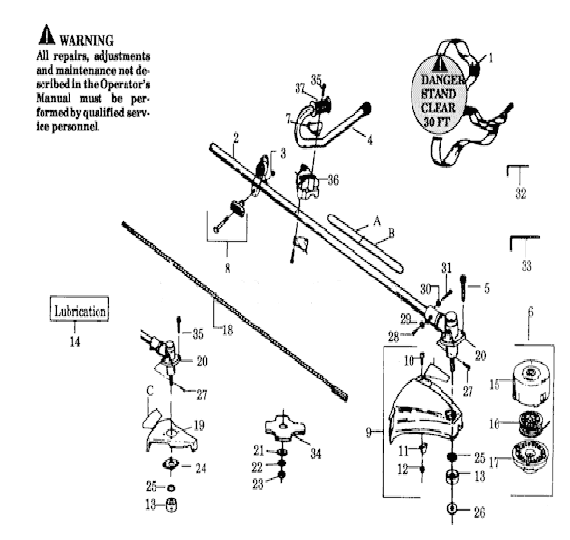

Weedeater 1900 Parts
| # | Part # | Weedeater 1900 Part Name | Note |
|---|---|---|---|
| 1 | 530094417 | Shoulder Strap | |
| 2 | 530094626 | Assy-Drive Shaft Hs | |
| 3 | 530015197 | Nut | |
| 4 | 530056300 | Handlebar Assembly w/DE | |
| 6 | 952701608 | Cutting Head Ass'y. | Incl. 15, 16, 17 |
| 7 | 530094572 | Handlebar Bracket | |
| 8 | 530069347 | "T" Handle Kit | |
| 9 | 530069256 | Shield Kit Assembly | Incl. 10, 11, 12 |
| 10 | 530015037 | Screw | |
| 11 | 530094570 | Line Limiter | |
| 12 | 530015217 | Nut - #10 - 24 | |
| 13 | 530094639 | Dust Cup | |
| 15 | 952701643 | Accy-W/E Tng I Head | |
| 16 | 952701589 | Accy We Spool Ting | |
| 17 | 530094494 | Cover | |
| 18 | 530094585 | Shaft-Flex Drive | |
| 19 | 530094633 | Shield | |
| 20 | 530071781 | Gear Box Assembly | |
| 21 | 530015792 | Washer | |
| 22 | 530016240 | Washer | |
| 23 | 530093748 | Nut | |
| 24 | 530027615 | Shield Retention Plate | |
| 25 | 530094640 | Seal | |
| 26 | 530094571 | Grass Washer | |
| 27 | 530094616 | Screw | |
| 28 | 530094612 | Screw | |
| 29 | 530015328 | Washer - #10 Heavy Lock | |
| 30 | 530001642 | Lockwasher | |
| 31 | 530001711 | Screw-1/4-20x1-Socket Hd.- Handlebar to Crankcase | |
| 32 | 530031159 | Wrench - Hex (5/32") | |
| 33 | 530031098 | Hex Wrench (3/16) | |
| 34 | 952711585 | Brush Blade | |
| 35 | 530015791 | Screw | |
| 36 | 530012207 | Handlebar Clamp | |
| 37 | 530092086 | Handlebar Grip | |
| BA | 530027432 | Safety Label (Upper) | |
| BB | 530027433 | Safety Label (Lower) | |
| BC | 530027749 | Decal-Blade Direction (Not a serviceable part) |

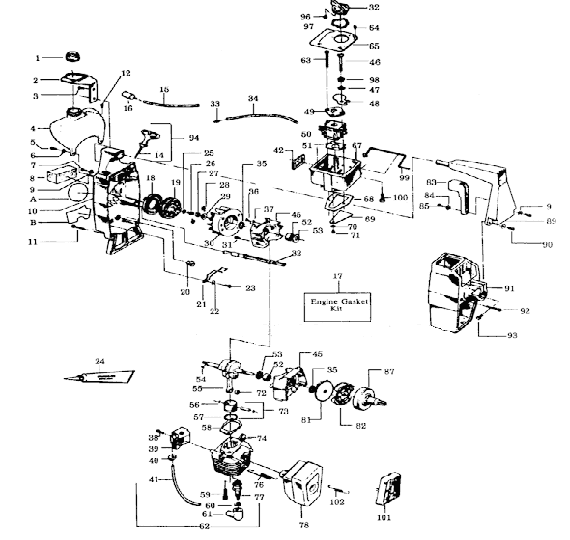

Weedeater1900 Engine Parts
| # | Part # | Weedeater 1900 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530014347 | Fuel Cap (w/ retainer) | Incl. "O" Ring |
| 2 | 530025377 | Bracket-Fuel Tank | |
| 4 | 530010887 | Assy-Fuel Tank (Ser | Incl. 1, 12, 15 & 16 |
| 5 | 530015509 | Screw | |
| 6 | 530015123 | Washer | |
| 7 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 8 | 530024371 | Air Filter | |
| 9 | 530015274 | Washer - Plain Type "B" | |
| 10 | 530010891 | Assy-Fan Hsg (Gy) | |
| 11 | 530015305 | Screw - 10 - 24 X 1-3/16" - Fil. Hd. | |
| 14 | 530069232 | Rope (3 ft.) | |
| 15 | 530069247 | Kit - Line Carb/Purge | Part Number 530069247- Purge Lines Required to be Ordered; Old Purge Lines Not Compatible with this Bulb |
| 16 | 530095646 | Fuel Pick-up Ass'y. | |
| 17 | 530069219 | Engine Gasket Kit | |
| 18 | 545008009 | Starter Spring | |
| 19 | 530026048 | Pulley-Starter | |
| 20 | 530026679 | Button - Kill Switch | |
| 21 | 530026559 | Spring-Kill Switch | |
| 22 | 530015382 | Washer | |
| 23 | 530015407 | Screw | |
| 24 | 530030054 | Crankcase Sealant | |
| 25 | 530015123 | Washer | |
| 26 | 530015479 | Screw | |
| 27 | 530626605 | Flywheel Nut | |
| 28 | 530023817 | Starter Dog Spring | |
| 29 | 530015127 | Flywheel Washer | |
| 30 | 530039114 | Flywheel Assembly | Incl. 28 |
| 31 | 530015369 | Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger | |
| 32 | 530027101 | Choke Knob | |
| 33 | 530026981 | Fuel Line Fitting | |
| 34 | 530021073 | Line-Fuel (Carb) | |
| 35 | 530019059 | Crankcase Seal | Included in Engine Gasket Kit. |
| 38 | 530015816 | Screw | |
| 39 | 530069181 | Kit - Ignition Module | |
| 40 | 530024435 | Plug Wire Grommet | |
| 41 | 530039082 | High Tension Lead Wire | |
| 42 | 530019105 | Carburetor Case Seal | Included in Engine Gasket Kit. |
| 45 | 530010757 | Crankcase Assembly | Incl. 35, 52 and Qty. 1 of #31 |
| 46 | 530015630 | Screw | |
| 47 | 530015254 | Wave Washer | |
| 48 | 530026772 | Choke Shutter | |
| 49 | 530026797 | Choke Guide Plate | |
| 50 | 530035183 | Carburetor | WA-149 |
| 51 | 530019157 | Carburetor Gasket | Included in Engine Gasket Kit. |
| 52 | 530032029 | Crankshaft Bearing | |
| 53 | 530015351 | Washer | |
| 54 | 530015126 | Flywheel Key | |
| 55 | 530010844 | Assy-Crankshaft | |
| 56 | 530015162 | Wrist Pin Retainer | |
| 57 | 530026681 | Piston Ring - Model 28Hbv | |
| 58 | 530069219 | Engine Gasket Kit | |
| 59 | 530015239 | Screw | |
| 60 | 507475326 | Spark Plug Boot | |
| 61 | 530003934 | Spark Plug Boot | |
| 62 | 530039103 | High Tension Lead Assembly | Incl. 41, 60 & 61 |
| 63 | 530015674 | Screw | |
| 64 | 530015235 | Screw | |
| 65 | 530027100 | Cover-Carb. Case | |
| 67 | 530027189 | Case-Carb | |
| 68 | 530019108 | Carburetor Case to Crankcase Gasket | Included in Engine Gasket Kit. |
| 69 | 530024438 | Reed Valve | |
| 70 | 530023367 | Washer | |
| 71 | 530015241 | Screw | |
| 72 | 530032092 | Piston Pin Bearing | |
| 73 | 530069241 | Kit-Piston (28.0CC) | |
| 74 | 530012191 | Cylinder (28.0CC) | |
| 76 | 530036409 | Muffler Attachment Spring | |
| 77 | 530030077 | Spark Plug | |
| 78 | 530069243 | Kit-Muffler Body | |
| 81 | 530069196 | Kit - Clutch Washer (3/8" Flat) | |
| 82 | 530069194 | Kit - Clutch Assembly | Incl. Clutch Washer |
| 83 | 530025342 | Trigger-Throttle | |
| 84 | 530015382 | Washer | |
| 85 | 530015407 | Screw | |
| 86 | 530015609 | Bolt-1/4-20 X 9/16 | |
| 87 | 530010902 | Assy-Drum & Couplin | |
| 89 | 530025704 | Handle | |
| 90 | 530015163 | Screw | |
| 91 | 530012096 | Shroud | |
| 92 | 530015583 | Screw-10-24 X 1-1/2 | |
| 93 | 530093802 | Bolt - Pinch Clamp | |
| 96 | 530015740 | Screw-Knob/Actuator | |
| 97 | 530015741 | Washer-Wave | |
| 98 | 530015673 | Spacer | |
| 99 | 530027190 | Wire-Throttle | |
| 100 | 530015723 | Screw | |
| 101 | 530024855 | Guard - Muffler | |
| 102 | 530024932 | Spring - Muffler Guard | |
| CA | 530027312 | Starting Instructions Decal | |
| CB | 530027638 | Choke/Off Decal |
