Weedeater 2610

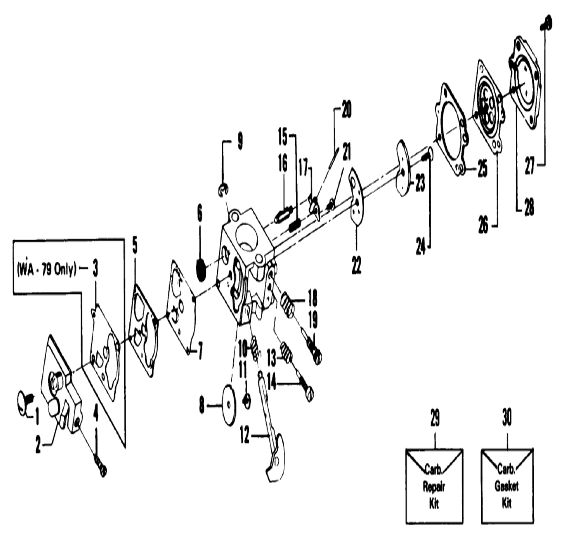

#	Part #	Weedeater 2610 Carburetor Part Name	Note
1	530035017	Screw - Pump Cover
2	530035154	Pump Cover Assembly	WA - 79
2	530035191	Cover Fuel Pump	WA - 149 #35183
3	530035135	Diaphragm Fuel Pump
4	530035156	Idle Speed Screw
5	530035009	Gasket-Fuel Pump	WA - 79
5	530035164	Gasket-Fuel Pump	WA - 149 #35183
6	530035178	Screen-Fuel Inlet	Included in Carburetor Kwik Repair Kit.
7	530035152	Diaphragm - Pump	WA - 79
7	530035166	Diaphragm-Fuel Pump	WA - 149 #35183
8	530035133	Valve - Throttle
9	530035007	Ring-Throttle Retainer
10	530035138	Spring---Throttle Return
11	530035015	Screw-Throttle Valve	Included in Carburetor Kwik Repair Kit.
12	530035132	Shaft Assembly-Throttle
13	530035023	Idle Needle Spring
14	530035141	Idle Needle
15	530035139	Spring-Metering Lever	Included in Carburetor Kwik Repair Kit.
16	530035106	Valve-Inlet Needle	Included in Carburetor Kwik Repair Kit.
17	530035031	Lever-Metering	Included in Carburetor Kwik Repair Kit.
18	530035036	Spring-High Speed Needle
19	530035142	Hi Speed Needle
20	530035028	Pin - Metering Lever	Included in Carburetor Kwik Repair Kit.
21	530035016	Screw - Metering Lever Pin
22	530035147	Circuit Plate Gasket
23	530035042	Plate-Circuit
24	530035137	Screw-Circuit Plate	Included in Carburetor Kwik Repair Kit.
25	530035151	Gasket-Metering Diaphragm
26	530035014	Diaphragm-Metering
27	530035153	Screw - Assembly - Metering Cover & Throttle Shaft Clip
28	530035149	Cover - Metering Diaphragm
29	530035144	Kit Carb - Kwik Repair Kit	WA - 79
29	530035185	Carb. Gasket/Diaphragm Kit	WA - 149 35183
30	530035145	Kit Carb - Gasket/Diaphragm	WA - 79

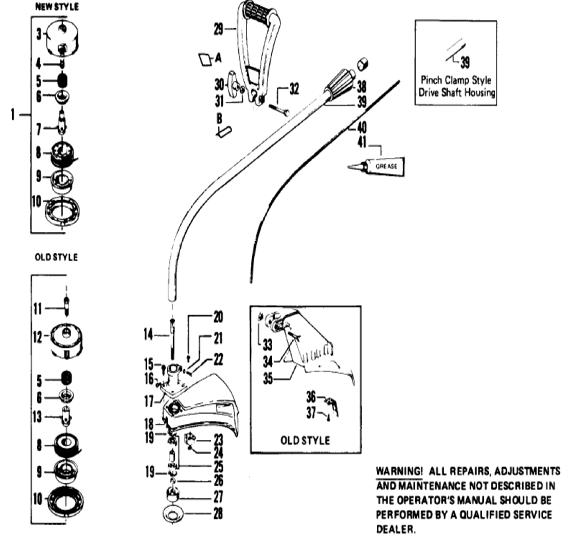

#	Part #	Weedeater 2610 Part Name	Note
1	952701574	Cutting Head Assembly	Incl. 3 -10
4	530093898	Line Saver - New Style only
5	530340007	Spring
6	530328929	Cap-Spring
7	530093897	Drive Gear New Style
8	952701523	Spool, Wound
9	530401183	Button-Black
10	530092133	Cover
11	530092064	Bolt - Drive Adaptor - Old Style
12	530071295	Assy-Hub (W/Line Sa
13	530092069	Drive Gear Old Style
14	530093846	Arbor Shaft
16	530015518	Screw
17	530094581	Assy-Bearing Hsg	Incl. 's 14, 19, 21, 22, 25, 26 & 27
19	530091783	Retaining Ring
20	530015037	Screw
21	530092227	Washer -Lock Star
22	530625509	Screw
25	530069086	Bearing & Spacer Kit
26	530092216	Washer
27	530092359	Dust Cup
28	530092218	Grass Washer
B	920092218	Screw
29	530069496	Cushioned Assist Handle Kit,
30	530092059	Knob - 1/4 - 20" - Model 2610
31	530092062	Washer - Cylinder Cover
32	530340228	Bolt
33	530092049	Wing Nut
34	530092051	BOLT
36	530092046	Line Limiter - Shield 14"
37	530092045	Screw - Line Limiter (14") To Shield
38	530024406	Collar Nut
39	530093728	Drive Shaft Housing Collar Nut Style Model 2610 (41")
39	530093726	Drive Shaft Housing Collar Nut Style Model 2610 (41")
40	530092261	Drive Shaft
BA	530026225	Decal-"D" Handle
B	952701569	Tap-N-Go Repair Kit For Old Style	Incl. 5, 6, 9, 10, 13

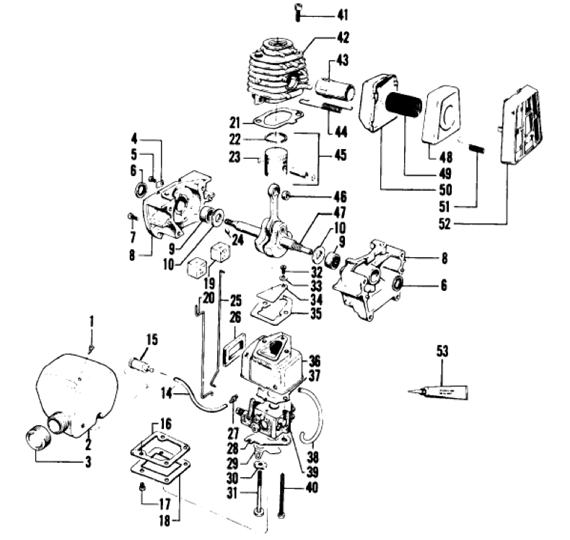

#	Part #	Weedeater 2610 Engine Part Name	Note
1	530026119	Check Valve
2	530010776	Fuel Tank Assembly	Incl. 1, 3, 14, 15
3	530014347	Fuel Cap (w/ retainer)
4	530023661	Clamp - Module Lead
5	530015004	Screw
6	530019059	Crankcase Seal
7	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
8	530010316	Crankcase Assembly	Incl. 4, 9 4 Qty. 4 of #7
9	530032029	Crankshaft Bearing
10	530015351	Washer
15	530091878	Fuel Filter Assembly
16	530019112	Gasket - Carburetor Case Cover
17	530015235	Screw
19	530023373	Throttle Wire Boot
21	530069219	Engine Gasket Kit
22	530024302	Ring - Piston
23	530015162	Wrist Pin Retainer
24	530015126	Flywheel Key
25	530024902	Throttle Wire
26	530019105	Carburetor Case Seal
27	530025472	Fuel Line Fitting
29	530024558	Choke Shutter
30	530015254	Wave Washer
31	530015404	Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder
32	530015241	Screw
33	530023367	Washer
34	530024438	Reed Valve
35	530019108	Carburetor Case to Crankcase Gasket
36	530024409	Plastic Housing
37	530019157	Carburetor Gasket
38	530069571	Return Line
39	530035183	Carburetor	Wa-149A
40	530015379	Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor
41	530015239	Screw
42	530012247	Cylinder
43	530026949	Diffuser-Muffler
44	530036409	Muffler Attachment Spring
45	530022198	Piston Assembly
46	530032057	Bearing - Wrist Pin
47	530026675	Assy-C'Shaft & Rod
48	530024361	Cover - Muffler
49	530024364	Screen - Spark Arresting
50	530024362	Body - Muffler
51	530024932	Spring - Muffler Guard
52	530024855	Guard - Muffler
53	530030054	Crankcase Sealant

#	Part #	Weedeater 2610 Engine Part Name
2	530069178	Fan Housing
3	530015583	Screw-10-24 X 1-1/2
4	530069232	Rope (3 ft.)
5	952701568	Air Filter
6	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
7	530024436	Bumper - Fuel Tank Housing
8	530024656	Handle And Fuel Tank Housing
9	530015247	Screw
10	530027373	Handle Cover
11	530026679	Button - Kill Switch
13	530015407	Screw
14	530024365	Trigger - Throttle
16	530026035	Baffle-Air
18	530015373	Screw - #10 x 1/4"
19	530015305	Screw - 10 - 24 X 1-3/16" - Fil. Hd.
20	530026122	Spacer
21	530015123	Washer
22	530015479	Screw
23	530626605	Flywheel Nut
24	530023817	Starter Dog Spring
25	530015127	Flywheel Washer
26	530039114	Flywheel Assembly
27	530024461	Trigger Spring
29	530024407	Spring - Kill Switch
30	530015814	Screw
31	502271102	High Tension Lead Assembly
32	530024435	Plug Wire Grommet
33	530015816	Screw
34	530024158	Lead Wire - Switch
35	530069181	Kit - Ignition Module
36	530024303	Knob - Choke
37	530069196	Kit - Clutch Washer (3/8" Flat)
38	530069194	Kit - Clutch Assembly
39	530039082	High Tension Lead Wire
40	530003934	Spark Plug Boot
41	507475326	Spark Plug Boot
42	530030077	Spark Plug
43	530010902	Assy-Drum & Couplin
44	530012096	Shroud
44	530011641	Screw Collar Style
45	530015583	Screw-10-24 X 1-1/2
46	530093802	Bolt - Pinch Clamp
47	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
