Weedeater 2615

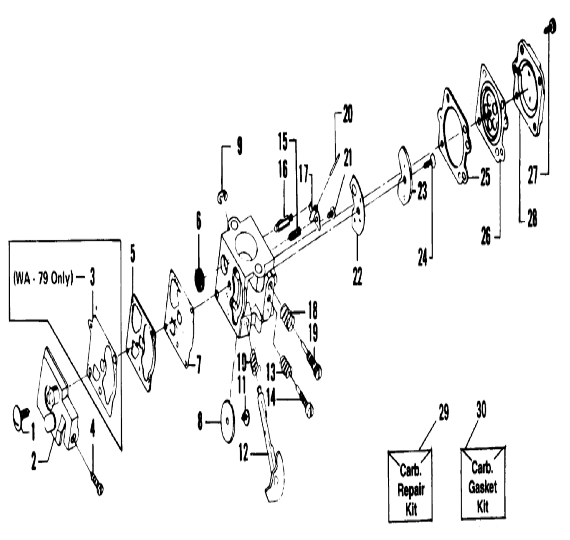

#	Part #	Weedeater 2615 Carburetor Part Name	Note
1	530035017	Screw - Pump Cover
2	530035154	Pump Cover Assembly	WA - 79
2	530035184	Pump Cover Ass'y (Inc. #4)	WA - 149 # 35183
3	530035135	Diaphragm Fuel Pump	WA - 79
4	530035156	Idle Speed Screw
5	530035009	Gasket-Fuel Pump	WA - 79
5	530035164	Gasket-Fuel Pump	WA - 149 # 35183
6	530035178	Screen-Fuel Inlet	Included in Carburetor Kwik Repair Kit.
7	530035152	Diaphragm - Pump	WA - 79
7	530035166	Diaphragm-Fuel Pump	WA - 149 # 35183
8	530035133	Valve - Throttle
9	530035007	Ring-Throttle Retainer
10	530035138	Spring---Throttle Return
11	530035015	Screw-Throttle Valve	Included in Carburetor Kwik Repair Kit.
12	530035132	Shaft Assembly-Throttle
13	530035023	Idle Needle Spring
14	530035141	Idle Needle
15	530035139	Spring-Metering Lever	Included in Carburetor Kwik Repair Kit.
16	530035106	Valve-Inlet Needle	Included in Carburetor Kwik Repair Kit.
17	530035031	Lever-Metering	Included in Carburetor Kwik Repair Kit.
18	530035036	Spring-High Speed Needle
19	530035142	Hi Speed Needle
20	530035028	Pin - Metering Lever	Included in Carburetor Kwik Repair Kit.
21	530035016	Screw - Metering Lever Pin
22	530035147	Circuit Plate Gasket
23	530035042	Plate-Circuit
24	530035137	Screw-Circuit Plate	Included in Carburetor Kwik Repair Kit.
25	530035151	Gasket-Metering Diaphragm
26	530035014	Diaphragm-Metering
27	530035153	Screw - Assembly - Metering Cover & Throttle Shaft Clip
28	530035149	Cover - Metering Diaphragm
29	530035144	Kit Carb - Kwik Repair Kit	WA - 79
29	530035185	Carb. Gasket/Diaphragm Kit	WA - 149 #35183
30	530035145	Kit Carb - Gasket/Diaphragm	WA - 79

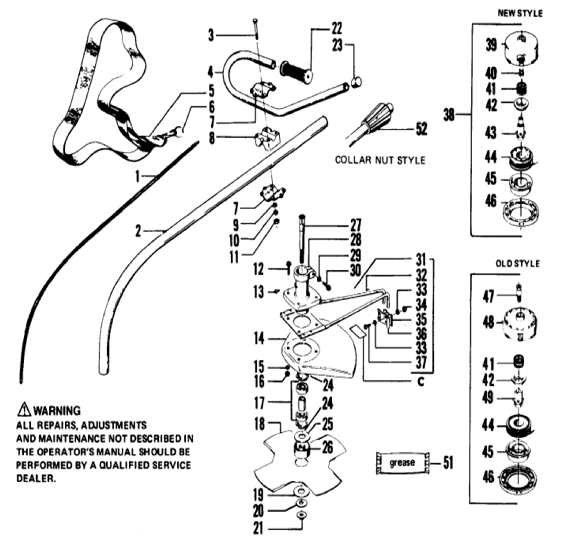

#	Part #	Weedeater 2615 Part Name	Note
1	530092261	Drive Shaft
2	530093728	Drive Shaft Housing Collar Nut Style Model 2610 (41")	Incl. 52
2	530093726	Drive Shaft Housing Collar Nut Style Model 2610 (41")
3	530015405	Bolt - #1/4 - 20x2" Hex
4	530093169	Handlebar
5	530094417	Shoulder Strap
6	530092231	"O" Ring
7	530092079	Clamp - Handlebar
8	530092081	Block - Handlebar
9	530092062	Washer - Cylinder Cover
10	530001642	Lockwasher
11	530015197	Nut
12	530625509	Screw
13	530015518	Screw
14	530094708	Shield - Aluminum
15	530092062	Washer - Cylinder Cover
16	530001615	Locknut - Bumper Spike Mounting (1/4 - 20)
17	530069086	Bearing & Spacer Kit
18	952701546	Weed Blade
19	530093751	Washer - #3/8 Flat
20	530016240	Washer
21	530093748	Nut
22	530092086	Handlebar Grip
23	530092192	Handlebar Cap
24	530091783	Retaining Ring
25	530092216	Washer
26	530092359	Dust Cup
27	530093846	Arbor Shaft
28	530094581	Assy-Bearing Hsg	Incl. 17 & 24-30
29	530092227	Washer -Lock Star
30	530625509	Screw
31	530092244	Line Limit Assy
32	530092226	Line Limiter Bracket
33	530015123	Washer
35	530092244	Line Limit Assy
36	530092244	Line Limit Assy
37	530015557	Screw 10-24 x 3/8 P
38	952701574	Cutting Head Assembly	Incl. 39 - 46
40	530093898	Line Saver - New Style only
41	530340007	Spring
42	530328929	Cap-Spring
43	530093897	Drive Gear New Style
44	952701523	Spool, Wound
45	530401183	Button-Black
46	530092133	Cover
47	530092064	Bolt - Drive Adaptor - Old Style
48	530071295	Assy-Hub (W/Line Sa
49	530092069	Drive Gear Old Style
52	530024406	Collar Nut
B	952701569	Tap-N-Go Repair Kit For Old Style	Incl. 41, 42, 45, 46, 49- optional; Not Shown.

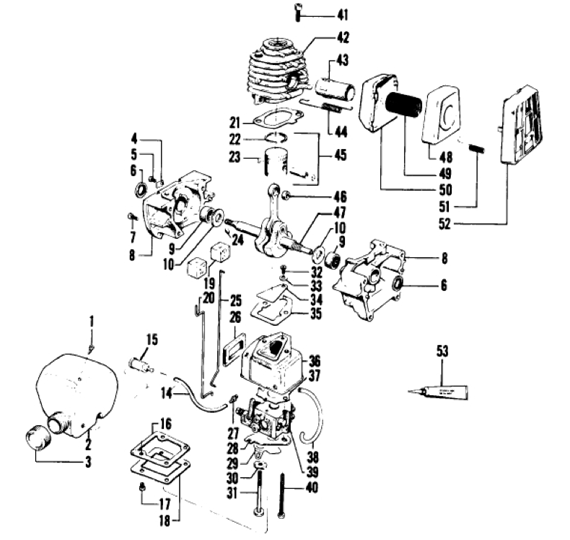

#	Part #	Weedeater 2615 Engine Part Name	Note
1	530026119	Check Valve
2	530010776	Fuel Tank Assembly	Incl. 1, 3 14 & 15
3	530010902	Assy-Drum & Couplin
4	530023661	Clamp - Module Lead
5	530015004	Screw
6	530019059	Crankcase Seal
7	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
8	530010316	Crankcase Assembly	Incl. 6, 9 and Qty. 4 of #7
9	530032029	Crankshaft Bearing
10	530015351	Washer
15	530091878	Fuel Filter Assembly
16	530019112	Gasket - Carburetor Case Cover
17	530015235	Screw
19	530023373	Throttle Wire Boot
21	530069219	Engine Gasket Kit
22	530024302	Ring - Piston
23	530015162	Wrist Pin Retainer
24	530015126	Flywheel Key
25	530024902	Throttle Wire
26	530019105	Carburetor Case Seal
29	530024558	Choke Shutter
30	530015254	Wave Washer
31	530015404	Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder
32	530015241	Screw
33	530023367	Washer
34	530024438	Reed Valve
35	530019108	Carburetor Case to Crankcase Gasket
36	530024409	Plastic Housing
37	530019157	Carburetor Gasket
38	530069571	Return Line
39	530035183	Carburetor	Wa-149A
40	530015379	Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor
41	530015239	Screw
42	530012247	Cylinder
43	530026949	Diffuser-Muffler
44	530036409	Muffler Attachment Spring
45	530022198	Piston Assembly
46	530032057	Bearing - Wrist Pin
47	530026675	Assy-C'Shaft & Rod
48	530024362	Body - Muffler
49	530024364	Screen - Spark Arresting
50	530024361	Cover - Muffler
51	530024932	Spring - Muffler Guard
52	530024855	Guard - Muffler
53	530030054	Crankcase Sealant

#	Part #	Weedeater 2615 Engine Part Name
2	530069178	Fan Housing
3	530015583	Screw-10-24 X 1-1/2
4	530024371	Air Filter
5	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
6	530024436	Bumper - Fuel Tank Housing
7	530024654	Hdl & Tank Hsg Gn
8	530002582	Grounding Switch Nut
9	530015247	Screw
10	530024663	Hdl Cover Green
11	530069182	Kit-Grounding Switc
12	530024365	Trigger - Throttle
14	530026035	Baffle-Air
16	530015373	Screw - #10 x 1/4"
17	530015305	Screw - 10 - 24 X 1-3/16" - Fil. Hd.
18	530026122	Spacer
19	530015123	Washer
20	530016141	Screw-Gear Box/Shield
21	530626605	Flywheel Nut
22	530023817	Starter Dog Spring
23	530015127	Flywheel Washer
24	530039114	Flywheel Assembly
25	530024461	Trigger Spring
26	530015814	Screw
27	502271102	High Tension Lead Assembly
28	530024435	Plug Wire Grommet
29	530025995	Tab-45 Degree Electrical
30	530015816	Screw
31	530069181	Kit - Ignition Module
32	530024303	Knob - Choke
33	530069196	Kit - Clutch Washer (3/8" Flat)
34	530069194	Kit - Clutch Assembly
35	530039082	High Tension Lead Wire
36	530003934	Spark Plug Boot
37	507475326	Spark Plug Boot
38	530030077	Spark Plug
39	530010902	Assy-Drum & Couplin
40	530011742	Collar Nut Style
40	530012096	Shroud
41	530015583	Screw-10-24 X 1-1/2
42	503718201	Rocker Switch
43	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
45	530039122	Lead Wire-Ground
46	530024569	Washer
