Weedeater 409.9

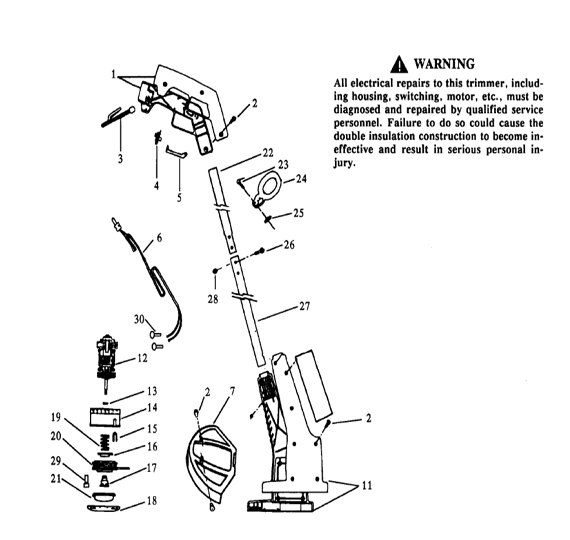

Weedeater 409.9 Parts
| # | Part # | Weedeater 409.9 Part Name | Note |
|---|---|---|---|
| 1 | 530402060 | Upper Handle Set | |
| 2 | 530352036 | Screw | |
| 4 | 530347653 | Cord Retainer | |
| 5 | 530347897 | On/Off Switch | |
| 6 | 530347654 | Trigger | |
| 7 | 530401654 | Wiring Harness | |
| 8 | 530400070 | Shield | |
| 9 | 530340887 | Motor Housing Set | |
| 11 | 530340556 | Motor Assembly | |
| 13 | 530340150 | Washer | |
| 14 | 530344329 | Hub | |
| 15 | 530340594 | Line Saver | |
| 16 | 530340732 | Spring Cap | |
| 17 | 530340590 | Drive Gear | |
| 18 | 530400007 | Cover | |
| 19 | 530340006 | Spring | |
| 20 | 952701521 | Spool w/Line | |
| 21 | 530400009 | Tap Button | |
| 22 | 530344506 | upper Tube | |
| 23 | 530340228 | Bolt | |
| 24 | 530322295 | Assist Handle | |
| 25 | 530015659 | Wing nut | |
| 26 | 530016113 | Screw | |
| 27 | 530344507 | lower Tube | |
| 28 | 530015653 | Nut | |
| 29 | 530340731 | Insert | |
| 30 | 530400077 | Carton Contents Bag | |
| 30 | 530400076 | Carton (Not a serviceable part) | |
| 30 | 530400072 | Operator's Manual | |
| 30 | 530347236 | Motor Hsg. Decal | |
| 30 | 530090876 | CONNECTOR |
