Weedeater 417

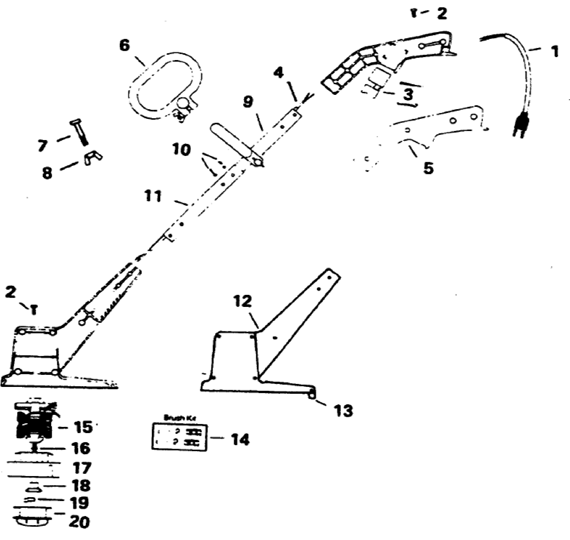

Weedeater 417 Parts
| # | Part # | Weedeater 417 Part Name | Note |
|---|---|---|---|
| 1 | 534234502 | POWER CORD PIGTAIL | |
| 2 | 530090827 | Screw - #8 - 11 x 3/4" Pan Hd. Plastite | |
| 4 | 530090882 | HARNESS | |
| 5 | 530090883 | TRIGGER HANDLE SET | |
| 6 | 530322295 | Assist Handle | |
| 7 | 530092051 | BOLT | |
| 8 | 530092049 | Wing Nut | |
| 9 | 530090885 | TUBE, UPPER | |
| 10 | 530092626 | TUBE FASTENER KIT | |
| 11 | 530090888 | TUBE, LOWER | |
| 12 | 530092627 | MOTOR HOUSING SET | |
| 13 | 530090874 | TAIL INTERFERENCE BLADE | |
| 14 | 530090891 | BRUSH KIT | |
| 15 | 530090892 | MOTOR ASSEMBLY | |
| 16 | 530340150 | Washer | |
| 17 | 530090894 | HUB w/LINE SAVERS | |
| 18 | 530090877 | HUB RETAINER | |
| 19 | 530090895 | LINE SAVERS |
