Weedeater 6000

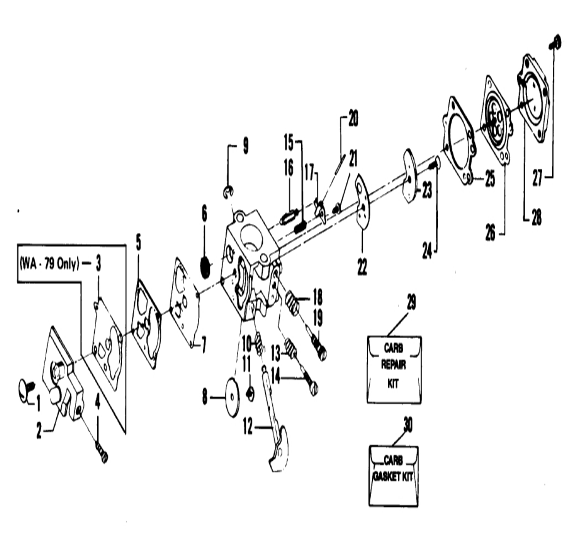

#	Part #	Weedeater 6000 Carburetor Part Name	Note
1	530035017	Screw - Pump Cover
2	530035154	Pump Cover Assembly	WA-79
2	530035191	Cover Fuel Pump	WA-149
3	530035135	Diaphragm Fuel Pump	WA-79
4	530035156	Idle Speed Screw
5	530035009	Gasket-Fuel Pump	WA-79
5	530035164	Gasket-Fuel Pump	WA-149
6	530035178	Screen-Fuel Inlet
7	530035152	Diaphragm - Pump	WA-79
7	530035166	Diaphragm-Fuel Pump	WA-149
8	530035133	Valve - Throttle
9	530035007	Ring-Throttle Retainer
10	530035138	Spring---Throttle Return
11	530035015	Screw-Throttle Valve
12	530035132	Shaft Assembly-Throttle
13	530035023	Idle Needle Spring
14	530035141	Idle Needle
15	530035139	Spring-Metering Lever
16	530035106	Valve-Inlet Needle
17	530035031	Lever-Metering
18	530035036	Spring-High Speed Needle
19	530035142	Hi Speed Needle
20	530035028	Pin - Metering Lever
21	530035016	Screw - Metering Lever Pin
22	530035147	Circuit Plate Gasket
23	530035042	Plate-Circuit
24	530035137	Screw-Circuit Plate
25	530035151	Gasket-Metering Diaphragm
26	530035014	Diaphragm-Metering
27	530035153	Screw - Assembly - Metering Cover & Throttle Shaft Clip
28	530035149	Cover - Metering Diaphragm
29	530035144	Kit Carb - Kwik Repair Kit	WA-79
29	530035185	Carb. Gasket/Diaphragm Kit	WA-149
30	530035145	Kit Carb - Gasket/Diaphragm	WA-79

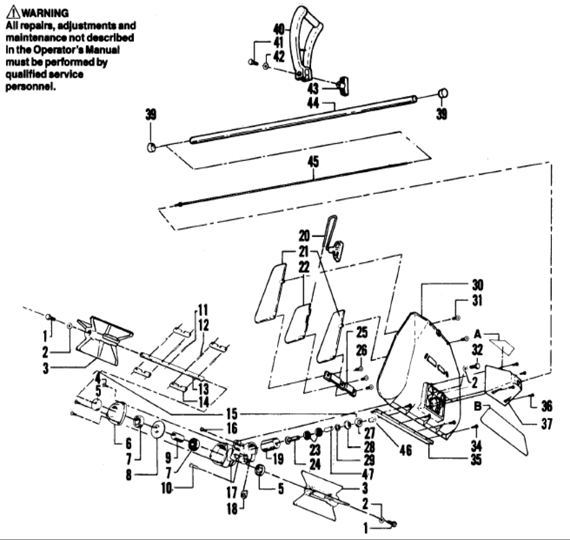

#	Part #	Weedeater 6000 Part Name	Note
1	530015426	Bolt
2	530092062	Washer - Cylinder Cover
3	530093883	Impeller
4	530093865	Screw - Gear Housing
5	530093119	Oil Seal - Double Lip
6	530093864	Gear Housing Cover
7	530093118	Bearing - Shaft
8	530093867	Gear - Spiral Bevel
9	530093807	Collar - Shaft
10	530015239	Screw
11	501093124	Pin Spiral - Gear
C	530093124	Pin Spiral - Gear
12	530093034	Pin - Spiral - Brace
13	530093117	Output Shaft
14	530093036	Brace - Impeller
15	530093861	Gear Box Ass'y	Incl. #4-10, 16-19, 23, 24 & 27-29
16	530015216	Screw - Hand Guard OPTIONAL
17	530093866	Gear Housing
18	530092308	Spacer 5/16 - Fiber - Pinch Clamp
19	530093863	Sleeve - Housing
20	530093111	Activating Rod Assembly
21	530092566	Outboard Vane
22	530092567	Vane - Center
23	530010722	"D" Handle
24	530093868	Pinion Gear - Spiral Bevel
26	530015481	Screw - Vane Tie Bar - 8 - 16 Soc. Hd.
27	530093129	Oil Seal - Single Lip
28	530091574	Snap Ring, Gear Housing Bearing
29	530091573	Snap Ring, Gear Housing
30	530092578	Housing -Impeller
31	530015481	Screw - Vane Tie Bar - 8 - 16 Soc. Hd.
32	530015448	Screw - Gear Box Mounting
34	530015451	Screw - Scraper Bar - #8 - 12 x 3/4" - Fil. Hd.
35	530093029	Scraper Bar
36	530015451	Screw - Scraper Bar - #8 - 12 x 3/4" - Fil. Hd.
37	530092563	Cover - Rear
39	530092192	Handlebar Cap
40	530093729	Assist Handle Model 2600
41	530340228	Bolt
42	530092062	Washer - Cylinder Cover
43	530092059	Knob - 1/4 - 20" - Model 2610
44	530094415	Assy-Drive Shaft Hs	Incl. #45
45	530092554	Drive Shaft Assembly
46	530093875	Plug - Grease
47	530093128	Collar Pinion
C	530064507	Operator's Manual

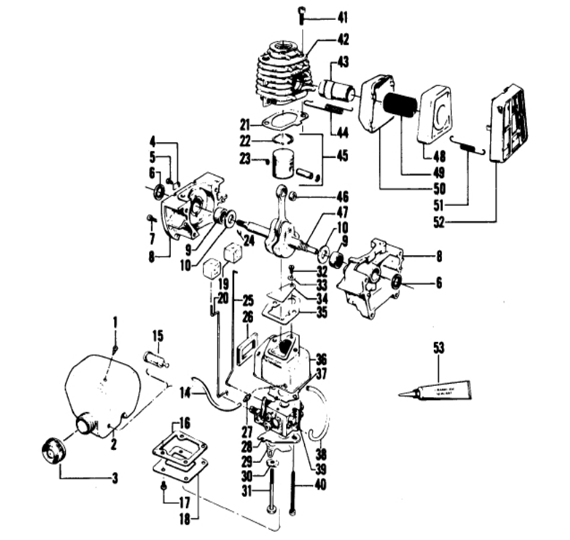

#	Part #	Weedeater 6000 Engine Part Name	Note
1	530026119	Check Valve
2	530010776	Fuel Tank Assembly	Incl. 1, 3, 14 & 15
3	530014347	Fuel Cap (w/ retainer)
4	530023661	Clamp - Module Lead
5	530015004	Screw
6	530019059	Crankcase Seal
7	530010316	Crankcase Assembly
8	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger	Incl. 6, 7 & 9
9	530032029	Crankshaft Bearing
10	530015351	Washer
15	530091878	Fuel Filter Assembly
16	530019112	Gasket - Carburetor Case Cover
17	530015235	Screw
19	530023373	Throttle Wire Boot
21	530069219	Engine Gasket Kit
22	530024929	Model 1800, Piston Ring
23	530015162	Wrist Pin Retainer
24	530015126	Flywheel Key
25	530024902	Throttle Wire
26	530019105	Carburetor Case Seal
27	530025472	Fuel Line Fitting
29	530024558	Choke Shutter
30	530015254	Wave Washer
31	530015404	Screw - 10 - 24 X 2-1/8" - Fil. Hd. - Carburetor Shoulder
32	530015241	Screw
33	530023367	Washer
34	530024438	Reed Valve
35	530019108	Carburetor Case to Crankcase Gasket
36	530024409	Plastic Housing
37	530019157	Carburetor Gasket
38	530069571	Return Line
39	530035183	Carburetor
40	530015379	Screw - 10 - 24 X 1-7/8" - Fil. Hd. - Carburetor
41	530015239	Screw
42	530012191	Cylinder (28.0CC)
43	530026949	Diffuser-Muffler
44	530036409	Muffler Attachment Spring
46	530032057	Bearing - Wrist Pin
47	530026675	Assy-C'Shaft & Rod
48	530024361	Cover - Muffler
49	530024364	Screen - Spark Arresting
50	530024362	Body - Muffler
51	530024932	Spring - Muffler Guard
52	530024855	Guard - Muffler
53	530030054	Crankcase Sealant

#	Part #	Weedeater 6000 Engine Part Name	Note
2	530069178	Fan Housing
3	530015583	Screw-10-24 X 1-1/2
5	530024371	Air Filter
6	530015582	Screw-10-24 X 5/8
7	530024436	Bumper - Fuel Tank Housing
8	530024656	Handle And Fuel Tank Housing
9	530015247	Screw
10	530027373	Handle Cover
11	530026679	Button - Kill Switch
13	530015407	Screw
14	530024365	Trigger - Throttle
16	530026035	Baffle-Air
18	530015373	Screw - #10 x 1/4"
19	530015305	Screw - 10 - 24 X 1-3/16" - Fil. Hd.
20	530026122	Spacer
21	530015123	Washer
22	530015479	Screw
23	530626605	Flywheel Nut
24	530023817	Starter Dog Spring
25	530015127	Flywheel Washer
26	530039114	Flywheel Assembly	Incl. #24
27	530024461	Trigger Spring
29	530024407	Spring - Kill Switch
30	530015814	Screw
31	502271102	High Tension Lead Assembly
D	530039103	High Tension Lead Assembly
32	530024435	Plug Wire Grommet
33	530015816	Screw
34	530024158	Lead Wire - Switch
35	530069181	Kit - Ignition Module
36	530024303	Knob - Choke
37	530069196	Kit - Clutch Washer (3/8" Flat)
39	530039082	High Tension Lead Wire
40	530003934	Spark Plug Boot
41	507475326	Spark Plug Boot
42	530030077	Spark Plug
43	530010902	Assy-Drum & Couplin
44	530012096	Shroud
45	530015583	Screw-10-24 X 1-1/2
46	530093802	Bolt - Pinch Clamp
47	530015369	Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger
48	530069232	Rope (3 ft.)
DA	530025256	Decal - Starting Instructions
DB	530025159	Shroud Decal Righ
