Weedeater 650

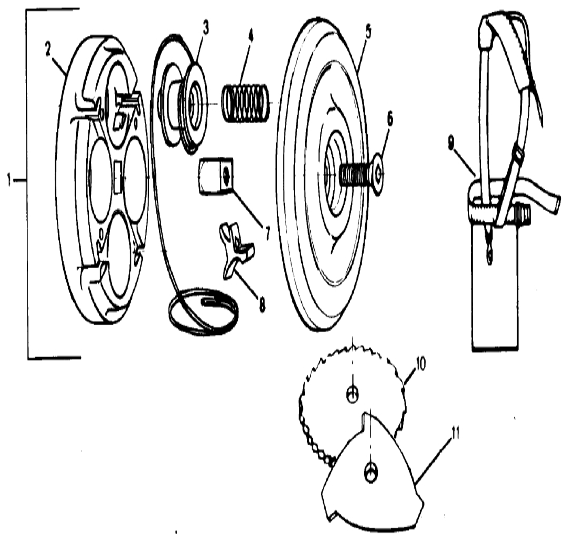

Weedeater 650 Head Parts
| # | Part # | Weedeater 650 Head Part Name | Note |
|---|---|---|---|
| 1 | 530092809 | Head Assembly | |
| 2 | 530092802 | Hub | |
| 3 | 952701510 | Accy-W/E (4Spool/.0 | |
| 4 | 530092805 | Spring, Spool Retainer | |
| 5 | 530092806 | Lower Cover | |
| 6 | 530092808 | Socket Head Cap Screw 3/8 NC x 1-1/4 | |
| 7 | 530092803 | Arbor Post | |
| 8 | 530340010 | Retainer, Line | |
| 10 | 952701598 | Accy-W/E 10" Brush | |
| 11 | 952701509 | Accy-W/E 11" |

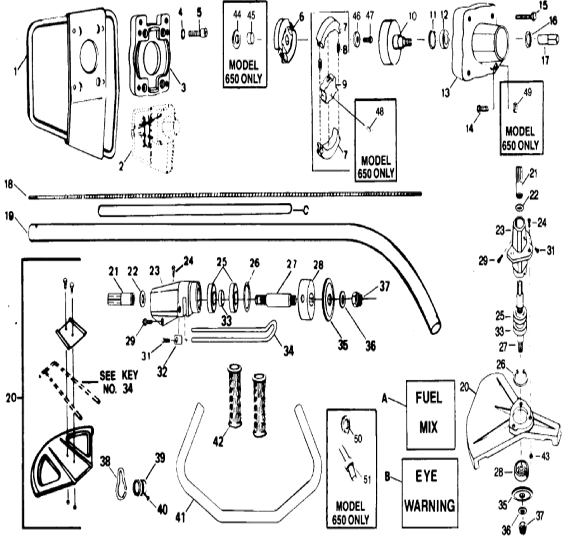

Weedeater 650 Parts
| # | Part # | Weedeater 650 Part Name | Note |
|---|---|---|---|
| 1 | 530092741 | Motor Leg | |
| 2 | 530092742 | Muffler Guard | |
| 3 | 530092743 | Plate Adaptor Engine | |
| 4 | 530091458 | Spring Washer | |
| 5 | 530092745 | Screw, Socket Hd. #5/16 - 18 x 3/4" | |
| 6 | 530092759 | Clutch Assembly | |
| 7 | 530093131 | Clutch Kit | |
| 8 | 530093131 | Clutch Kit | |
| 9 | 530092763 | Rotor Hub | |
| 10 | 530092767 | Drum & Arbor | |
| 11 | 530092768 | Retaining Ring | |
| 12 | 530092769 | Bearing | |
| 13 | 530092771 | Housing, Clutch w/Bearing/Get. Ring | |
| 14 | 530092772 | Screw | |
| 15 | 530092775 | Screw, Hex Hd #1/4 - 20 x 2" | |
| 16 | 530092773 | Washer, Drive Shaft, Upper & Lower | |
| 17 | 530092774 | Coupling Squared | |
| 18 | 530092776 | Dr Shaft 5111-00 | |
| 19 | 530092778 | Housing-Drive Shaft | |
| 20 | 530092937 | Shield Kit | |
| 21 | 530092774 | Coupling Squared | |
| 22 | 530092773 | Washer, Drive Shaft, Upper & Lower | |
| 23 | 530092793 | Lower Housing | |
| 24 | 530092787 | Screw-Hex Hd #8 X 3 | |
| 25 | 530092769 | Bearing | |
| 26 | 530092768 | Retaining Ring | |
| 27 | 530092799 | Arbor 5180-00 | |
| 28 | 530092801 | Cup Washer, Arbor, Keyed | |
| 29 | 530092794 | Screw, Soc. Hd. #5/16 - 18 x 1" | |
| 31 | 530092795 | Screw #1/4 - 20 x 1/2" | |
| 32 | 530092796 | Washer-Retainer | |
| 33 | 530092798 | Spacer | |
| 34 | 530092797 | Sup Brace 5190-00 | |
| 35 | 530093137 | Washer, Lower Arbor | |
| 36 | 530093153 | Bushing | |
| 37 | 530093139 | Nut 5123-00 | |
| 38 | 110092781 | Gasket-Garburetor K | |
| B | 530092781 | Swivel Hook Wire | |
| 39 | 530092782 | Collar, Swivel | |
| 40 | 530092821 | Screw 5170-00 | |
| 41 | 530092784 | Handlebar | |
| 42 | 530092086 | Handlebar Grip | |
| 43 | 530094506 | Nut-10-32 (657) | |
| 44 | 530092757 | Washer | |
| 45 | 530092758 | Spacer | |
| 47 | 530092766 | Screw | |
| 48 | 530092764 | Woodruff Key | |
| 49 | 530001615 | Locknut - Bumper Spike Mounting (1/4 - 20) | |
| 50 | 530092792 | Pilot Washer | |
| 51 | 530092777 | Grommet - Drive Shaft | |
| BA | 530092749 | Decal - Fuel Mix | |
| BB | 530092791 | Decal - Choke/Eye Warning | |
| BC | 530092819 | Decal-Safety Label |

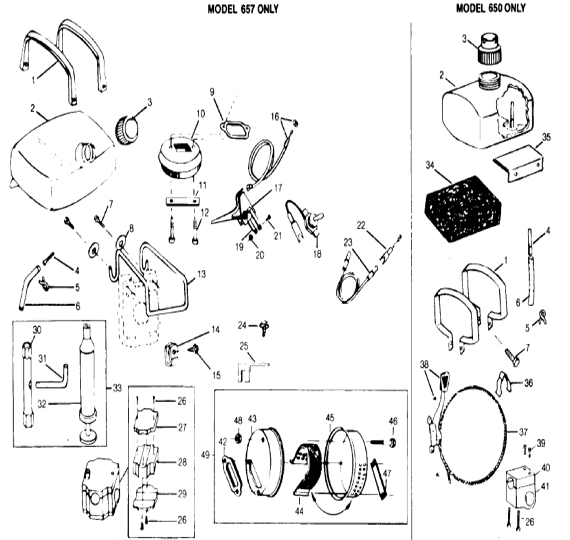

Weedeater 650 Engine Parts
| # | Part # | Weedeater 650 Engine Part Name | Note |
|---|---|---|---|
| 1 | 530092755 | Strap - Fuel Tank | |
| 2 | 530092747 | Tank | |
| 3 | 530092746 | Cap,-Fuel Tank-Plastic | |
| 4 | 530092748 | Filter, - Fuel Tank | |
| 5 | 530092752 | Clip, - Fuel Hose | |
| 6 | 530092751 | Hose | |
| 7 | 530092756 | Screw #1/4-20x5/8" | |
| 34 | 530092753 | Fuel Tank Baffle | |
| 35 | 530092754 | Fuel Tank Bracket | |
| 36 | 530092788 | Clip-Throttle Contr | |
| 37 | 530092789 | Throttle Control Complete | |
| 38 | 530092787 | Screw-Hex Hd #8 X 3 | |
| 39 | 530092772 | Screw | |
| 40 | 530092785 | Upper Clamp | |
| 41 | 530092786 | Lower Clamp | |
| 42 | 530019151 | Gasket | |
| 43 | 530027419 | Muffler-Inlet | |
| 44 | 530027420 | Baffle w/Screen | |
| 45 | 530027421 | Muffler, Outlet | |
| 46 | 530027422 | Loc Tab | |
| 47 | 530625567 | Screw - Spike Mtg.(1/4 - 20 x 1-3/4 - Hex Hd.) | |
| 48 | 530015515 | Locknut | |
| 49 | 530069239 | Spark Arresting Muf |
