Weedeater 657

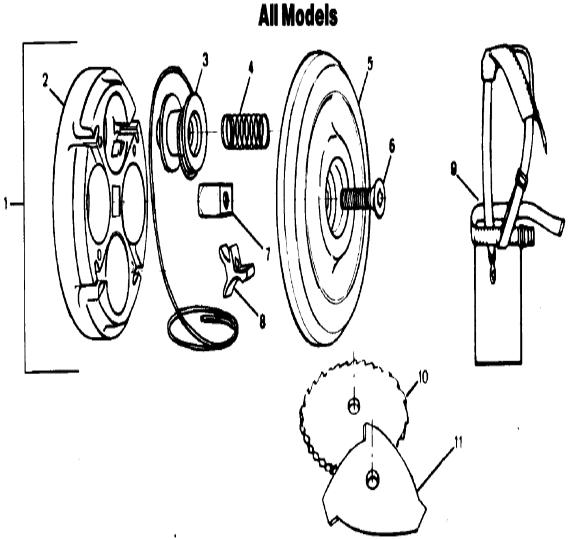

Weedeater 657 Head Parts
# | Part # | Weedeater 657 Head | Note |
---|---|---|---|
1 | 530092809 | Head Assembly | |
2 | 530092802 | Hub | |
3 | 952701510 | Accy-W/E (4Spool/.0 | |
4 | 530092805 | Spring, Spool Retainer | |
5 | 530092806 | Lower Cover | |
6 | 530092808 | Socket Head Cap Screw 3/8 NC x 1-1/4 | |
7 | 530092803 | Arbor Post | |
8 | 530340010 | Retainer, Line | |
10 | 952701598 | Accy-W/E 10" Brush | |
11 | 952701509 | Accy-W/E 11" |

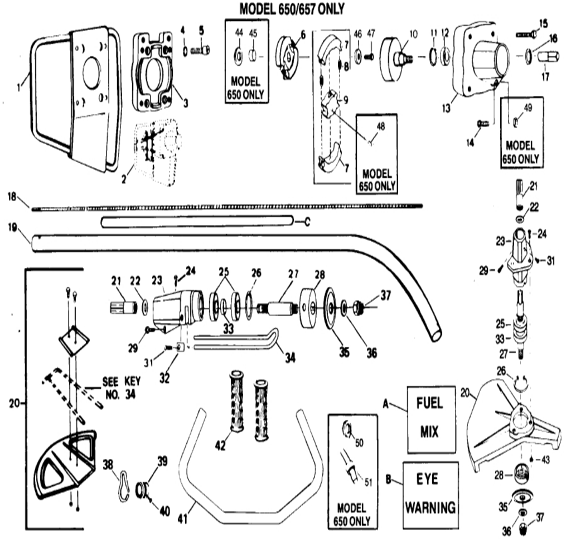

Weedeater 657 Parts
# | Part # | Weedeater 657 Parts | Note |
---|---|---|---|
1 | 530092741 | Motor Leg | |
2 | 530092742 | Muffler Guard | |
3 | 530092743 | Plate Adaptor Engine | |
4 | 530091458 | Spring Washer | |
5 | 530092745 | Screw, Socket Hd. #5/16 - 18 x 3/4" | |
6 | 530092816 | Clutch Assembly | |
7 | 530093131 | Clutch Kit | |
8 | 530093131 | Clutch Kit | |
9 | 530092817 | Rotor Hub | |
10 | 530092767 | Drum & Arbor | |
11 | 530092768 | Retaining Ring | |
12 | 530092769 | Bearing | |
13 | 530092771 | Housing, Clutch w/Bearing/Get. Ring | |
14 | 530092794 | Screw, Soc. Hd. #5/16 - 18 x 1" | |
15 | 530092775 | Screw, Hex Hd #1/4 - 20 x 2" | |
16 | 530092773 | Washer, Drive Shaft, Upper & Lower | |
17 | 530092774 | Coupling Squared | |
18 | 530094500 | Shaft-Flex | |
19 | 530094501 | Housing-Drive Shaft | |
20 | 530094504 | Shield Kit | |
21 | 530092774 | Coupling Squared | |
22 | 530092773 | Washer, Drive Shaft, Upper & Lower | |
23 | 530094503 | Lower Housing | |
24 | 530094505 | Screw-10-32X5/8(Phi | |
25 | 530092769 | Bearing | |
26 | 530092768 | Retaining Ring | |
27 | 530092799 | Arbor 5180-00 | |
28 | 530092801 | Cup Washer, Arbor, Keyed | |
29 | 530092794 | Screw, Soc. Hd. #5/16 - 18 x 1" | |
31 | 530092795 | Screw #1/4 - 20 x 1/2" | |
32 | 530092796 | Washer-Retainer | |
33 | 530092798 | Spacer | |
34 | 530092797 | Sup Brace 5190-00 | |
35 | 530093137 | Washer, Lower Arbor | |
36 | 530093153 | Bushing | |
36 | 530092773 | Washer, Drive Shaft, Upper & Lower | |
37 | 530093139 | Nut 5123-00 | |
38 | 110092781 | Gasket-Garburetor K | |
B | 530092781 | Swivel Hook Wire | |
39 | 530092782 | Collar, Swivel | |
40 | 530092821 | Screw 5170-00 | |
41 | 530092784 | Handlebar | |
42 | 530091402 | Grip | |
43 | 530094506 | Nut-10-32 (657) | |
44 | 530092757 | Washer | |
45 | 530092758 | Spacer | |
47 | 530092766 | Screw | |
48 | 530092764 | Woodruff Key | |
49 | 530001615 | Locknut - Bumper Spike Mounting (1/4 - 20) | |
50 | 530092792 | Pilot Washer | |
51 | 530092777 | Grommet - Drive Shaft | |
BA | 530092749 | Decal - Fuel Mix | |
BB | 530092791 | Decal - Choke/Eye Warning |

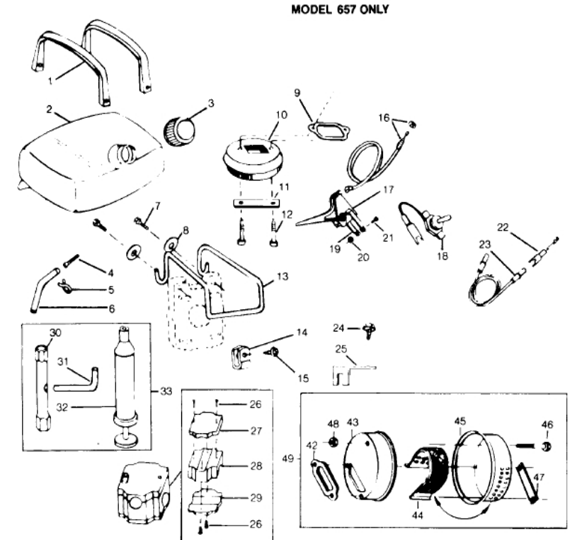

Weedeater 657 Engine Parts
# | Part # | Weedeater 657 Engine Parts | Note |
---|---|---|---|
1 | 530092815 | Strap - Fuel Tank | |
2 | 530092811 | Tank | |
3 | 530092746 | Cap,-Fuel Tank-Plastic | |
4 | 530092748 | Filter, - Fuel Tank | |
5 | 530092752 | Clip, - Fuel Hose | |
6 | 530092812 | Hose, Fuel | |
7 | 530092756 | Screw #1/4-20x5/8" | |
9 | 530092829 | Gasket,-Exhaust | |
10 | 530092828 | Muffler | |
12 | 530092831 | Screw, Hex Hd.-#1/4-20x2-5/16" | |
13 | 530092813 | Cradle, Fuel Tank | |
14 | 530093789 | Clip, Retaining | |
15 | 530093791 | Screw, (Slot Hd) Clip | |
16 | 530093785 | Throttle Control Cable w/nut | |
18 | 530093786 | Previous Style | |
18 | 506094502 | Band-Chain Brake | |
19 | 530091346 | Throttle Control Clamp | |
20 | 530091333 | NUT | |
21 | 530091332 | Bolt - Throttle Control Clamp | |
22 | 530093787 | Wire Connector & Cover | |
23 | 530093788 | Switch Harness Lead | |
24 | 530092833 | Screw-Cable Clamp #1/4-20x3/8" | |
25 | 530093784 | Bracket-Throttle Co | |
26 | 530092818 | Screw, Allen Hd #5/16-18x7/8" | |
27 | 530092822 | Upper Cap | |
28 | 530092823 | Clamp Mid 5400-00 | |
29 | 530092824 | Lower Cap | |
30 | 530091361 | Wrench - 14 mm & 17 mm | |
31 | 530092627 | MOTOR HOUSING SET | |
32 | 530091413 | Grease Gun | |
33 | 530092826 | Tool Kit | |
42 | 530019151 | Gasket | |
43 | 530027419 | Muffler-Inlet | |
44 | 530027420 | Baffle w/Screen | |
45 | 530027421 | Muffler, Outlet | |
46 | 530027422 | Loc Tab | |
47 | 530625567 | Screw - Spike Mtg.(1/4 - 20 x 1-3/4 - Hex Hd.) | |
48 | 530015515 | Locknut | |
49 | 530069239 | Spark Arresting Muf |
