Weedeater 807-4

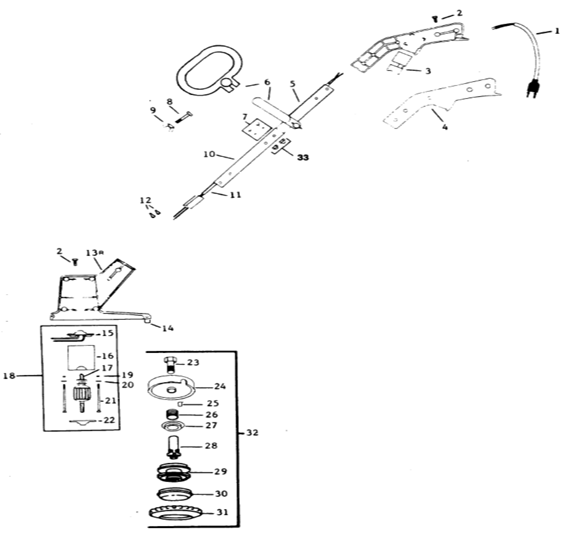

Weedeater 807-4 Parts
| # | Part # | Weedeater 807-4 Parts | Note |
|---|---|---|---|
| 1 | 534234502 | POWER CORD PIGTAIL | |
| 2 | 530090827 | Screw - #8 - 11 x 3/4" Pan Hd. Plastite | |
| 4 | 530093618 | TRIGGER HANDLE (SET ONLY) | |
| 5 | 530093186 | UPPER HANDLE TUBE | |
| 6 | 530322295 | Assist Handle | |
| 8 | 530093617 | BOLT | |
| 9 | 530092049 | Wing Nut | |
| 10 | 530093737 | LOWER HANDLE TUBE | |
| 11 | 530092731 | WIRING HARNESS WITH RECTIFIER | |
| 12 | 530090876 | CONNECTOR | |
| 13 | 530093754 | MOTOR HOUSING (SET ONLY) | |
| 14 | 530090874 | TAIL INTERFERENCE BLADE | |
| 15 | 530092714 | END BELL w/BRUSHES AND SPRINGS | |
| 16 | 530092715 | FIELD ASSEMBLY | |
| 17 | 530092716 | ARMATURE | |
| 18 | 530092717 | MOTOR (COMPLETE) | |
| 19 | 530091333 | NUT | |
| 20 | 530092718 | LOCK WASHER | |
| 21 | 530092719 | SCREW | |
| 22 | 530092721 | END BELL, OUTPUT | |
| 23 | 530092726 | DRIVE ADAPTOR | |
| 24 | 530092673 | HUB w/LINE SAVER | |
| 25 | 530092134 | LINE SAVER | |
| 26 | 530340007 | Spring | |
| 27 | 530328929 | Cap-Spring | |
| 28 | 530092069 | Drive Gear Old Style | |
| 29 | 702509 | SPOOL, WOUND | |
| 30 | 530401183 | Button-Black | |
| 31 | 530092133 | Cover | |
| 32 | 530092728 | TAP-N-GO HEAD ASSEMBLY | |
| 33 | 530093202 | NUT, ACORN |
