Weedeater 807-8

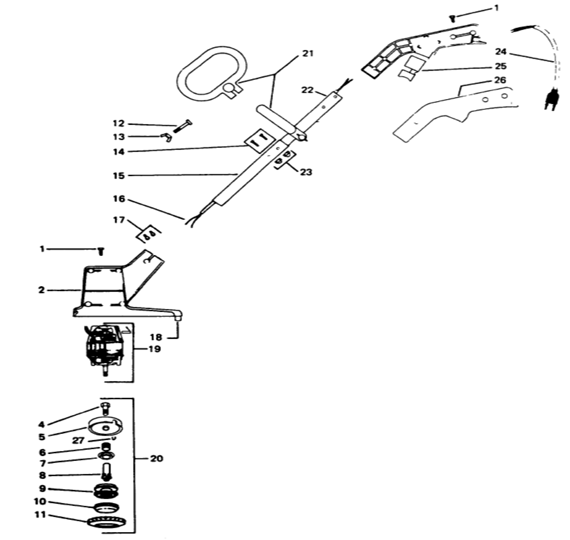

Weedeater 807-8 Parts
| # | Part # | Weedeater 807-8 Parts | Note |
|---|---|---|---|
| 1 | 530090827 | Screw - #8 - 11 x 3/4" Pan Hd. Plastite | |
| 2 | 530093754 | MOTOR HOUSING (SET ONLY) | |
| 4 | 530093765 | DRIVE ADAPTOR | |
| 5 | 530092673 | HUB w/LINE SAVER | |
| 6 | 530340007 | Spring | |
| 7 | 530328929 | Cap-Spring | |
| 8 | 530092069 | Drive Gear Old Style | |
| 9 | 702509 | SPOOL, WOUND | |
| 10 | 530401183 | Button-Black | |
| 11 | 530092133 | Cover | |
| 12 | 530093617 | BOLT | |
| 13 | 530092049 | Wing Nut | |
| 15 | 530093737 | LOWER HANDLE TUBE | |
| 16 | 530093739 | WIRING HARNESS | |
| 17 | 530090876 | CONNECTOR | |
| 18 | 530090874 | TAIL INTERFERENCE BLADE | |
| 19 | 530093738 | MOTOR | |
| 20 | 530093767 | TAP-N-GO HEAD ASSEMBLY (COMPLETE) | |
| 21 | 530322295 | Assist Handle | |
| 22 | 530093186 | UPPER HANDLE TUBE | |
| 23 | 530093202 | NUT, ACORN | |
| 24 | 534234502 | POWER CORD PIGTAIL | |
| 26 | 530093618 | TRIGGER HANDLE (SET ONLY) | |
| 27 | 530092134 | LINE SAVER |
